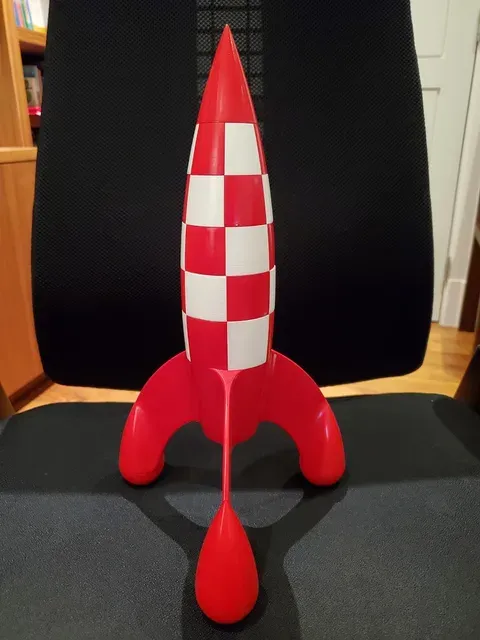

Tintin rocket by jorgenp + Feet

This is an EXACT copy of the original + new Feet

https://www.thingiverse.com/thing:2825717

The only thing that changes are additional Feed I designed.

If you made the original already, you can still print/paint/glue-on the EXTRA feet without changing anything else.

All I did was import the bottom part into TinkerCAD, sized a sphere to the diameter of the existing feet and used those to cut-out the shape to fit them.

Instruction:

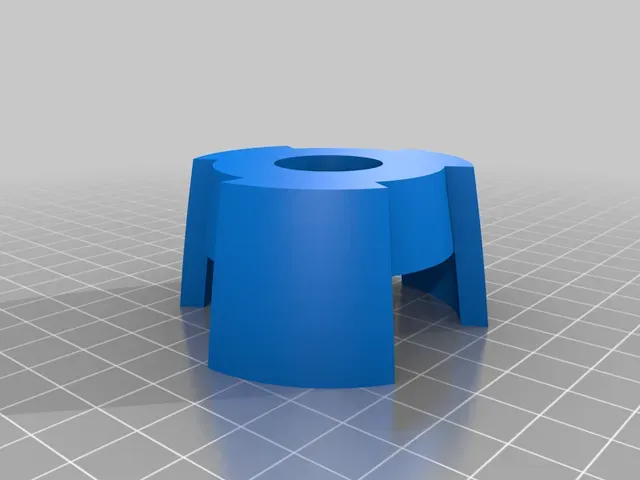

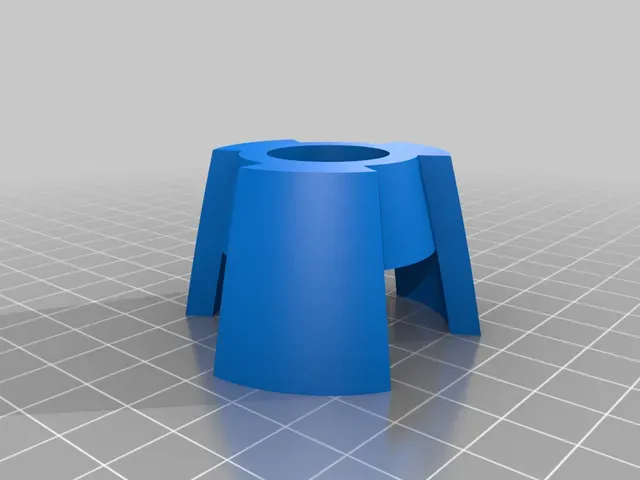

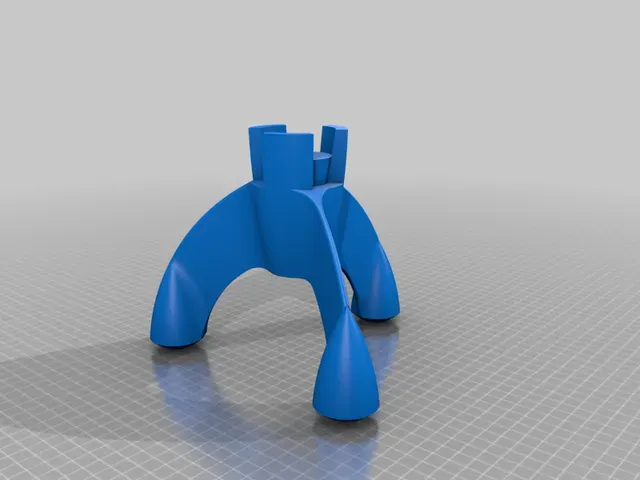

Print the base (Red Bottom) with supports, the sides with brims, the rest as-is.

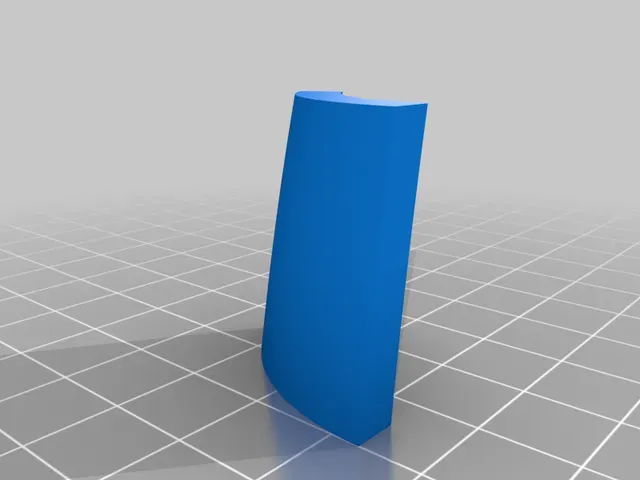

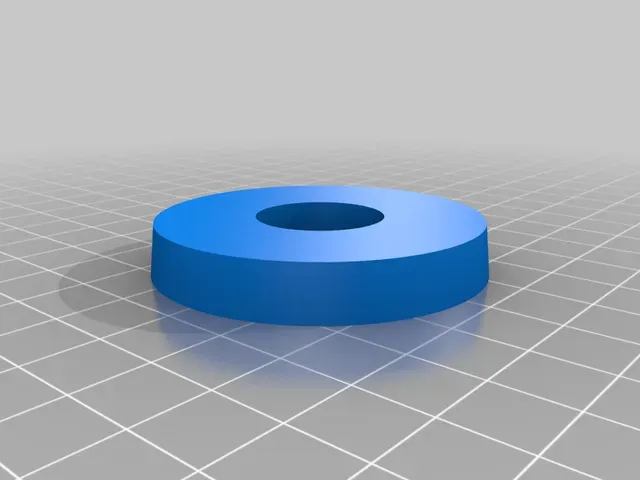

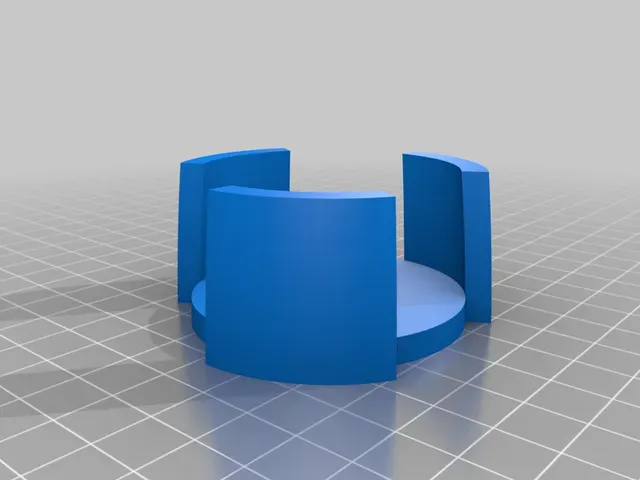

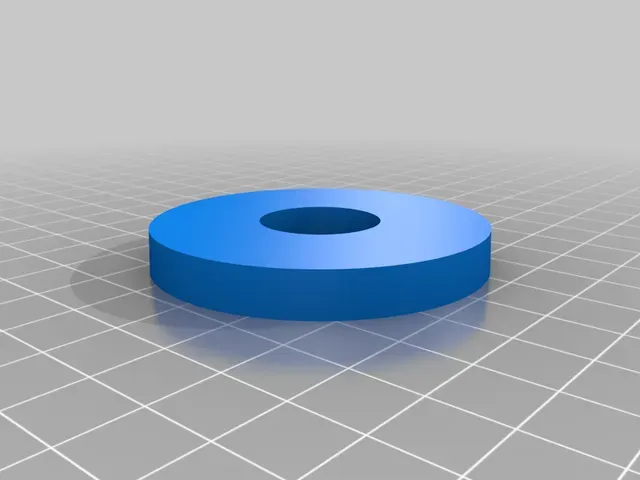

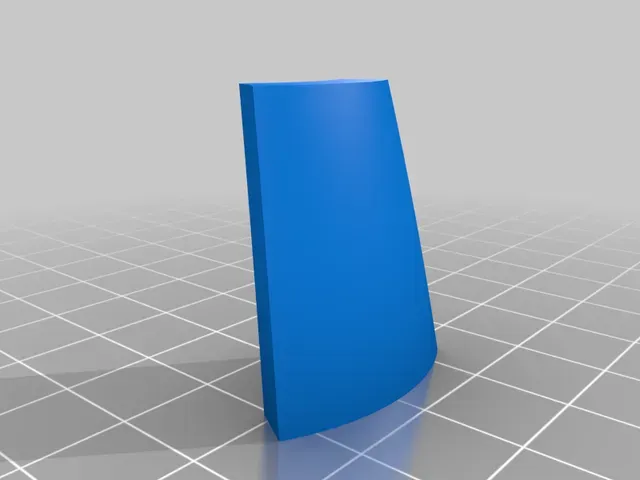

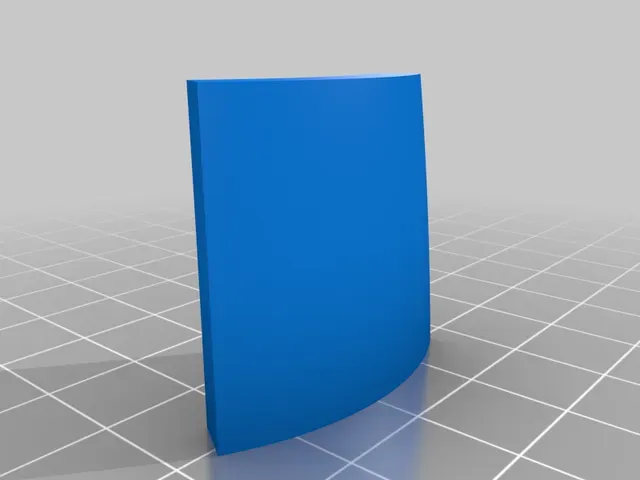

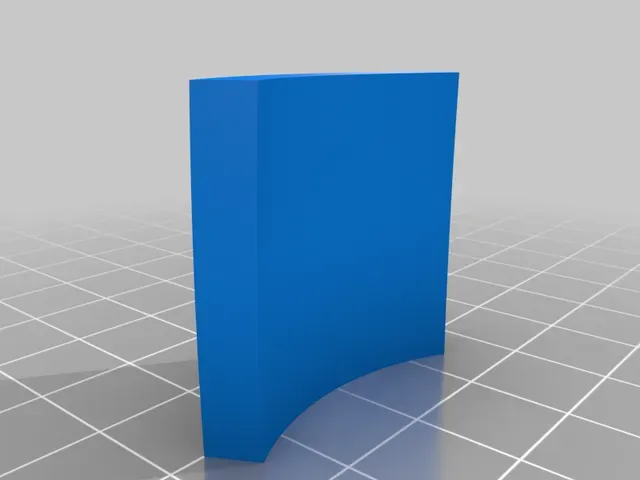

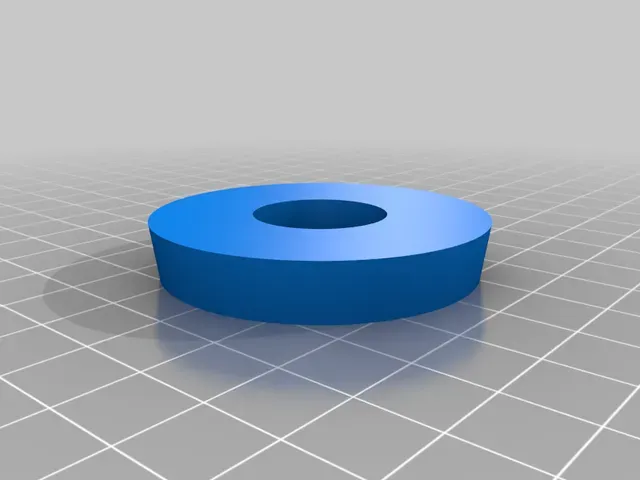

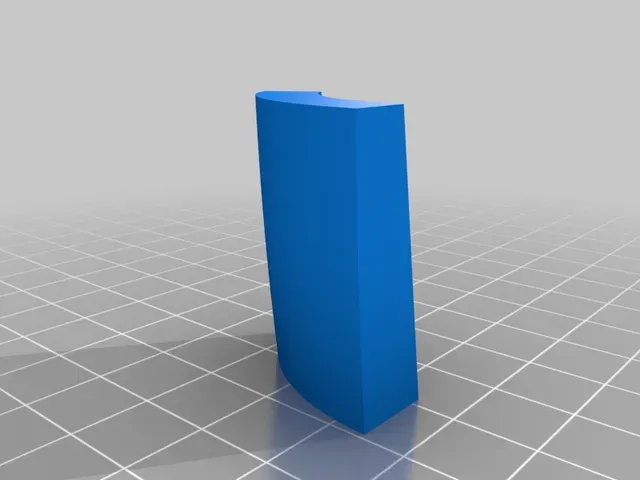

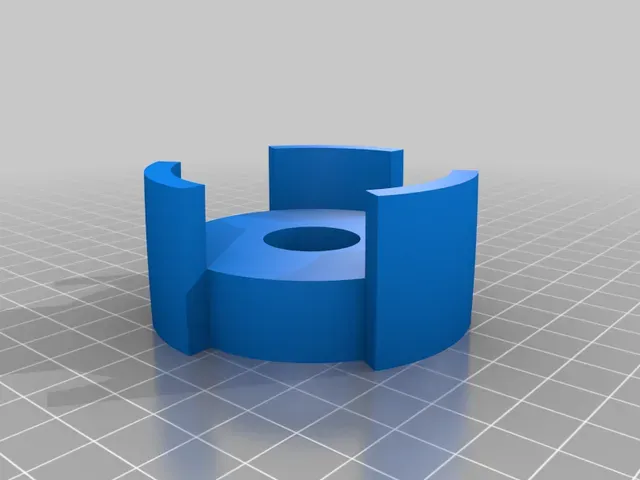

The difference between the two bottom parts is the fillet between the landing pods. For a sharper line, use Red bottom2.stl. Otherwise, just print and rotate each part as needed. Glue the side panels to the inner rings. You need to print each side panel x3.

Part reference is easy according to size/shape

Assembly:

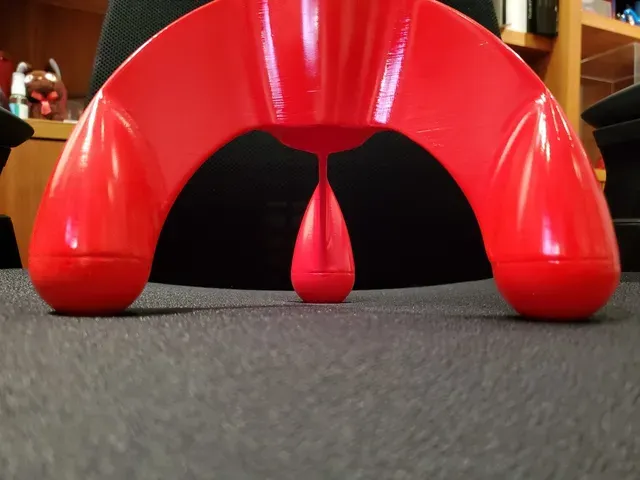

Sand feet inside and bottom's feet.

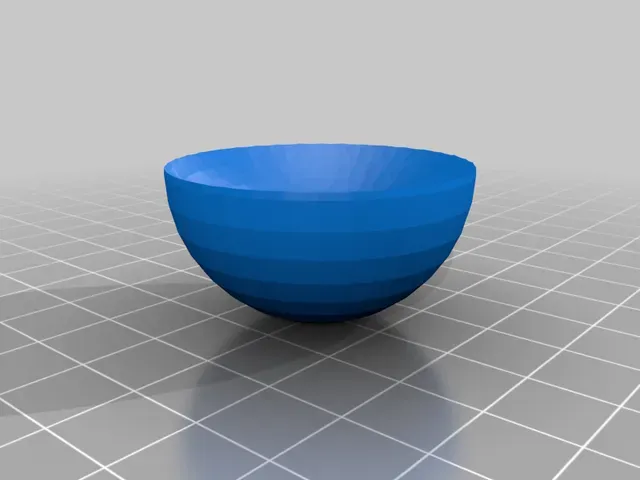

Use superglue to glue on 3 copies of the EXTRA feet.

Fill gaps with modelling putty. Sand smooth.

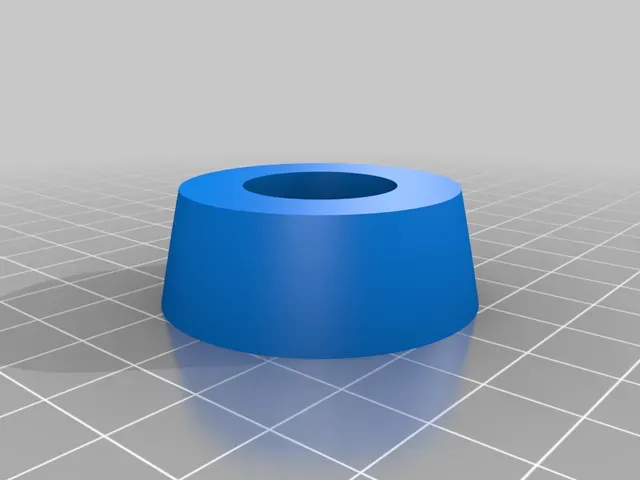

Paint parts individually, glue together each "floor" white & red parts for snug fit.

Fit the thick part (closed part) of the center pin into the nose cone, slide lower parts on one buy one.

Print Settings

Printer Brand:

Prusa

Printer: I3 MK3S

Rafts:

No

Supports: Yes

Filament:

Verbatim PLA Transparent

Category: Vehicles
