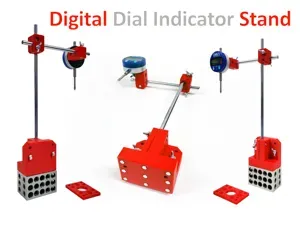

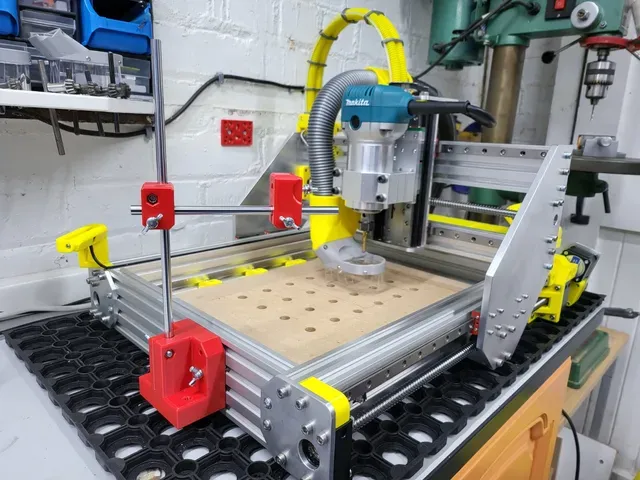

Digital Dial Indicator Stand

This is a Dial Indicator Stand using 8mm diameter steel rod.

Includes:

Tool less Adjustment

Adjustable Nodes and Individual Clamping.

Magnet Apertures to base.

Location Mounting Plate.

M5 Fixing Holes to Base & Side @ 20mm vertical centres.

75mm x 50mm Footprint to suit 123 Blocks

The Dial Mount was designed specifically for the following Product. I have uploaded a step file for folks to adjust for their own specific instrument:

DML 0-25mm Digital Dial Indicator DTI 0.01mm Resolution 12 Months Warranty : Amazon.co.uk: Business, Industry & Science

BOM

- 2 Lengths of 8mm steel guide rod or bar. Lengths to suit need or suitable offcuts. - 7 x M5 x 25 mm long Winged Bolts. - 7 x M5 Nyloc Nuts. - 6 to 9 Magnets, 6mm Dia. x 3mm deep (Optional) - 2 x M5 Heat Sets (Optional for Mounting Plate) 7mm OD x 4mm Deep or 2 x M5 Nuts. - Superglue for fixing Magnets. Printing

No supports required if printed in published orientation.

Update: 22_02_24

Revised the Mounting Plate to include 2 x M5 Nuts and additional slotted mounting holes.
