Ikea 365+ 10.6L Spool Holder Filament Dry Box

Spool Holder / Filament Dry Box for Ikea 365+ 10.6L box

---

This model use Ikea 365+ 10.6L that can put 2 spool per box I also have model for one spool per box available here: https://www.printables.com/model/1361931-one-spool-filament-dry-box-using-cereal-box

---

I make 2 boxes in a bit difference details.

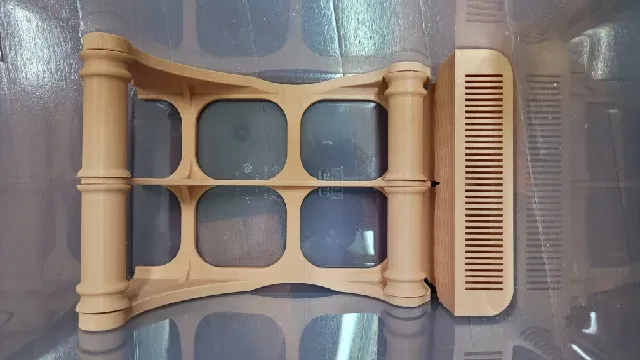

First box I trim the Spool Holder Base to fit with my printer 220x220 to print only once, but the base can move and push silaca gel box so I fix with double side tape.

Then second box I print the Front and Back base from the original design then screw it together using m3-8 nuts (find front and back stl files from the original link): https://www.printables.com/model/185335-filament-trockenbox-filament-dry-box

The roller I use 608zz remix model but it 77mm length then I trim it to 73mm length to fit with 74mm base, I made in 3 difference scaling (1.01 1.014 1.025) select one that printout fit with 608zz bearing.

The silica gel box from original is look too tall for me, so I cut it lower and draw a new cap to fit with new height. (I printed the cap but never use it :P)

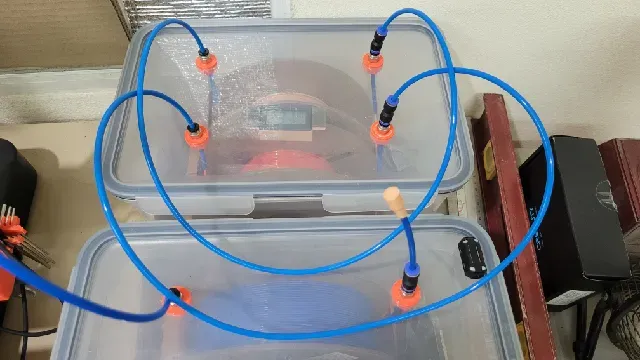

for the filament feed hole, I try many model and finally select this PC4 bulkhead, but the original design I can not screw in the connector the hole is too small then I modify the hole a bit bigger and screw without using washer.

I also designed the hygrometer holder here: https://www.printables.com/model/775316-hygrometer-holder-for-dry-box

Print parameter: Spool base print fine without supported, infill 15-30% Roller I print vertically without supported, infill 20% have some stringing but no effect and we not see it when using. PC4 Nut wall: 3-4 infill 20% Silica gel box I print without supported, infill 15% the hole have some strings but acceptable.

Parts list:

- Ikea 365+ 10.6L box with cap x 1 - 608zz or 608rs ball bearing x 8 - Silica gel (blue or orange) 0.5-1Kg - PC4-M10 (PC4-01) x 4 - PTFE tube 4x2 (OD=4, ID=2) 2-3 meters - Tube connector PU4 x 2 (additional)
