Watercooled GPU Vertical Bracket for Lian-Li O11DXL-X

Like it? Support me.

Website: https://pixelglance.com Buy Models: https://cults3d.com/en/users/PixelGlance

Summary

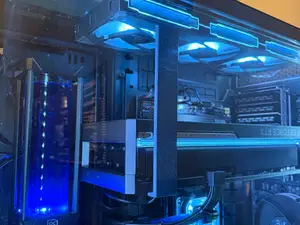

This is Vertical Bracket for watercooled GPUs, and is perfectly fitted for the Lian-Li O11DXL-X PC Case. But it has also proven to fit the O11 Dynamic EVO just fine too. It offers way better stability than most purchasable brackets, and has a set-off to the front and slightly upwards to give extra space behind the card for cabling and tubing and fit large radiators perfectly below the GPU.

Features

- Brim, to hide the ugly risers properly. - Slim floor design to allow for maximum air-flow. - Super sturdy 90° angle offering maximum stability in all directions. - Front off-set, offering space behind the GPU for tubing and cabling. Also visually more pleasing. - Slight upwards off-set, offering perfect spacing to fit large radiators

Compatible Risers

Tested these ones, but most if not all should fit just fine. - LINKUP - AVA5 Armour PCIE 5.0 Riser Cable - LIAN LI - PW-PCI-420 PCIE 4.0 Riser Cable

Important

As stated above, it has been specifically designed for: PC Case: Lian-Li O11DXL-X

I've tested it with: GPU Waterblock: - EKWB EK-Quantum Vector³ Astral RTX 5090 - EKWB Vector Strix for an ASUS RTX 3090 Radiator bottom: - EKWB EK-Coolstream XE 360

Also due to the front off-set, the 2nd slot for the GPU outlets will be hidden. In my case i only lost 1 HDMI slot. This solely depends on your GPU.

Does it fit?

It should fit most GPUs, with and without watercooling block, bit make sure to check first. Other risers and PC cases may work, PC cases may vary the most. If not, modify it to your needs. It was not designed as a general purpose riser!

Please let others know in the comments if it fits your personal specifications. So others save the time of testing themselves.

Why not buy one?

I tested multiple ones, but quickly realized that neither of them gives me the required space behind the GPU i need for my tubing design and it was either colliding with my bottom radiator or was so high up that it hid more than half the Mainboard. It looked awful, wasn't stable enough and would have required to re-think my original tubing plan.

So i went ahead and designed my own Vertical GPU Bracket that fulfilled all my needs.

Print Settings

Printer: i3 MK2.5

Rafts: No

Supports: Yes

Resolution: 0.2

Infill: 20%

Filament: Prusament PETG Galaxy Black

Recommendations: ASA or PETG to prevent deformation from the heat of the GPU back-plate. Print in upwards position, adding only support to the arm that holds the riser which makes it very easy to print.
