Multiboard - Makita Battery Holder

If you like my work, tinkering and messing around with stuff. Then please consider supporting, it would be greatly appreciated!

I'll be looking forward to interact with you guys and our shared passion for making! :)

https://www.buymeacoffee.com/flobi ________________________________________________________________________________________________________________

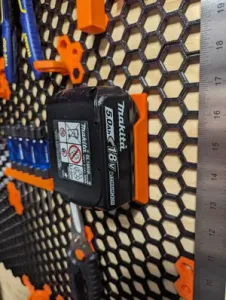

Couldn't find any battery holders for the Multiboard system. Or, atleast to my liking. So i came up with my own spin on an awesome battery holder in my own humble opinion! :)

It has “built-in” snaps, which makes is very easy to install on the Multiboard Tiles. I decided to land on 2 snaps, since 1 was way to weak. 2 snaps seems to hold on more then enough i think. I've printed 4 holders for my tiny wall and they are holding 3x 6.0Ah batteries and 1x 3.0Ah battery.

Pros: - Print-in-place with NO supports! - Self detaching from bed after it cools down - Very satisfying to click the batteries into - Can be re-located indefinitely

Cons: - Haven't found any yet

________________________________________________________________________________________________________________

Parts list: 1x Battery Holder

Print instructions:

All files prints very nicely on the Ender V3 KE. The only things i changed in the print settings are the following:

- Infill Pattern - Walls/Wall Line Count - Build Plate Adhesion/Brim - Seam Allignment/Z-Seam Allignment

Follow the below matrix to achieve the same great results as i got:

Parts Quality Support Infill Brim

Battery Holder 0.2mm No 15% Gyroid No
