Quicko T12 LED portable soldering station STC

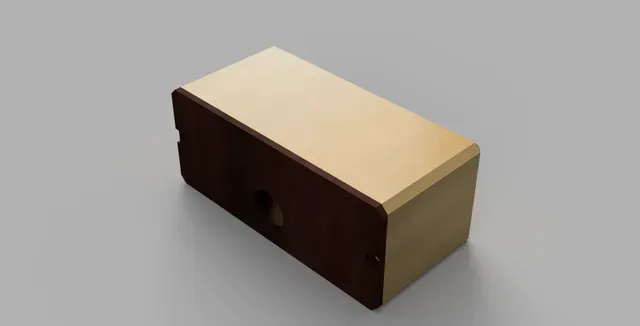

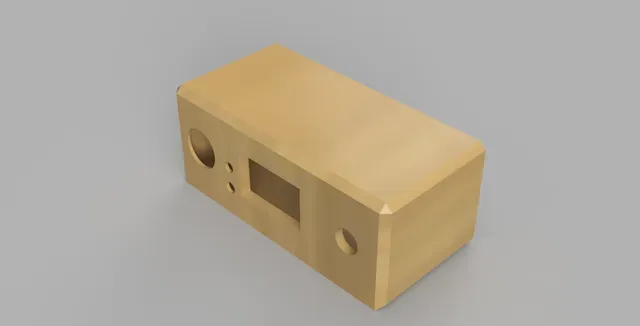

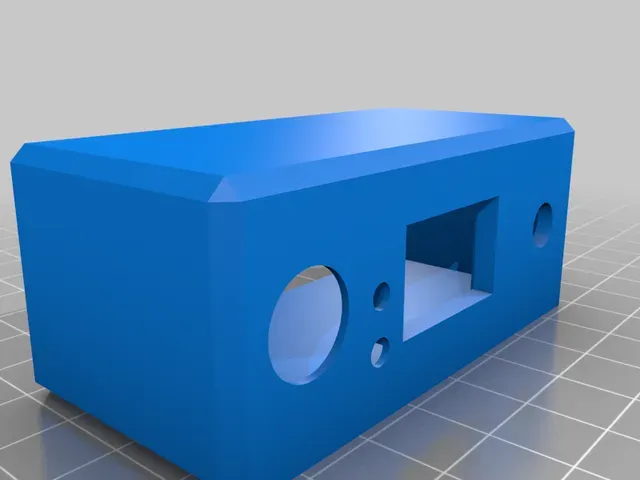

A small case for Hakko T12 soldering station clone. This is for 8 segment version not OLED with the JST-XH connector on the back.

At the moment my printer is not in the best shape so the print quality is not too good.

Soldering of the GX16-5 can be tricky as you need to solder it while the PCB is inside the case.

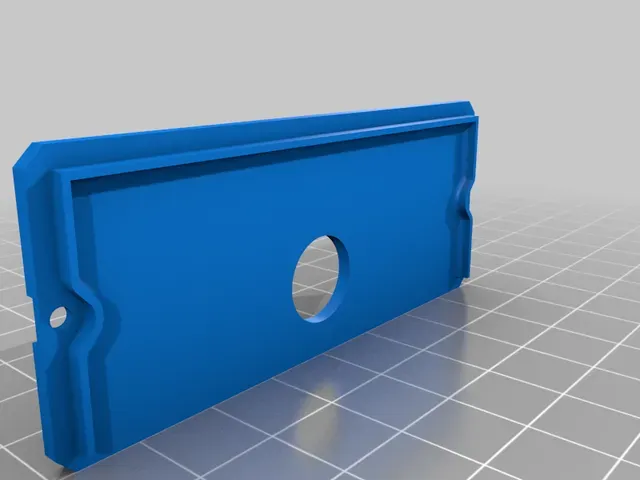

Rear screws are M2×8 with 4mm diameter head. Supports are recommended for the lid as the counterbore holes for the heads are floating and if the slicer will start from the hole it will print in air.

The rear DC connector is the 5.5×2.5 female jack.

As always STEP files are included, if you need a switch on the rear or something else. There is plenty of space between the rear lid and the body to fit most switches.

Print Settings

Printer Brand:

Creality

Printer: Ender 3

Rafts:

No

Supports: Yes

Resolution:

0.2

Infill: 10

Notes:

Support recommended for lid.
