Pastamatic .3mf Including Several Remixes
Сведения о модели
- Площадка
Printables
- Цена
- Бесплатно
- Лицензия
- CC-BY-NC-SA
- Только некоммерческое использование с указанием автора; переделки — под той же лицензией.
- Форматы
- 3MF
- 150 Лайки
- 1 751 Загрузки
- 12 Напечатали
- 19 Комментарии
- 6 409 Просмотры
Описание

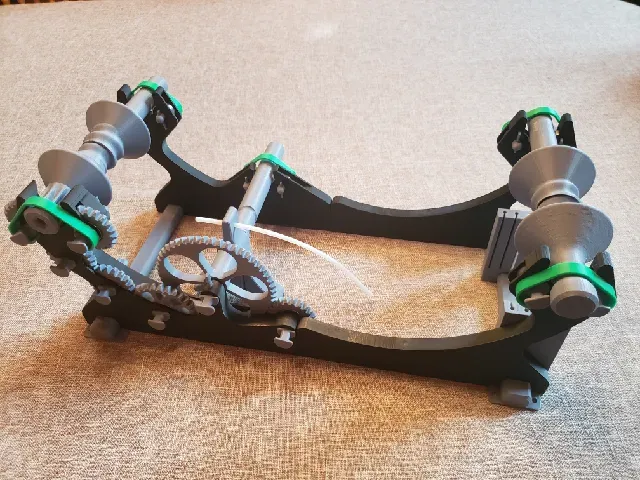

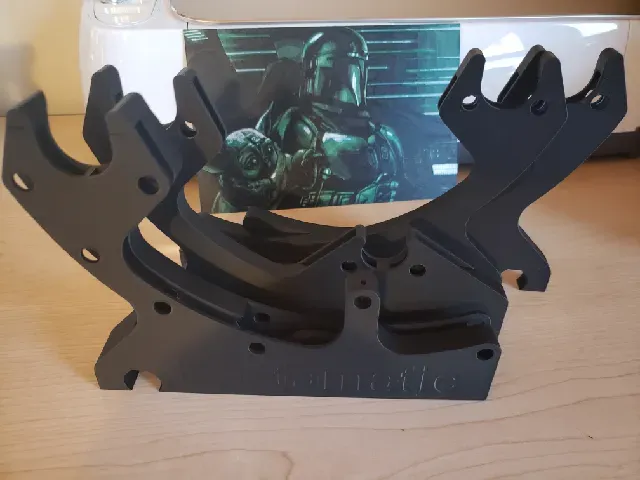

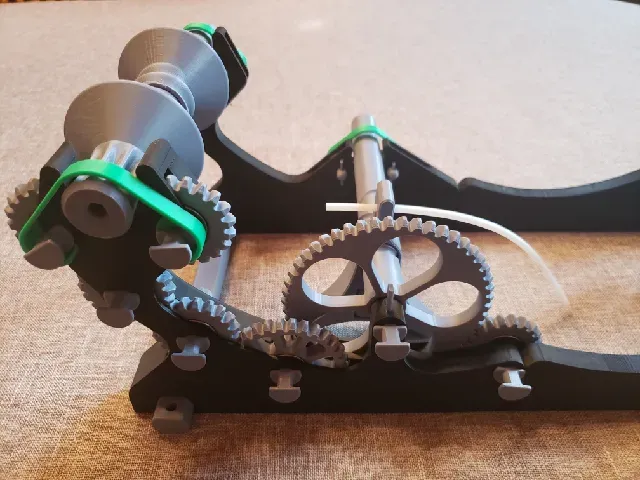

I wanted a 3 color Pastamatic with Bambu colors to compliment my Bambu Lab Colored toolbox with AMS lid. Decided on Black Frames, Grey Parts, and Bambu Green spindle clips for accents. File is on 4 seperate plates. Took considerable time to organize the plates as well as substitue the remixes and I'm sharing 3mf with the community. I don't have any TPU so included the PETG Wiper Remix for any of us that has PETG on hand.

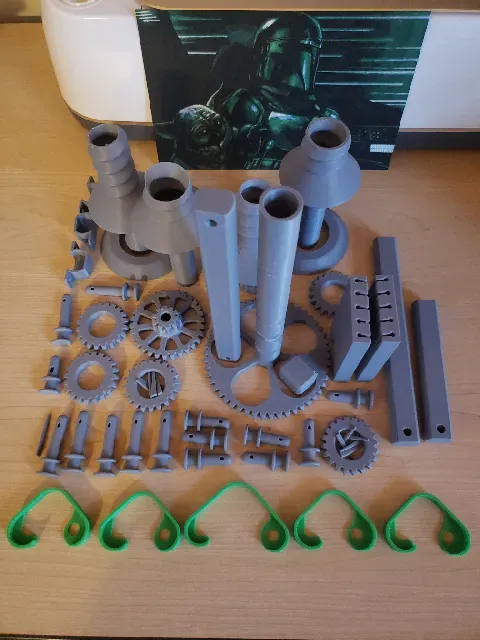

Printing: -Used .08 layer height, 15% Gyroid Infill, Cool Plate for PLA and Engineering Plate for PETG. -Kept GekoPrime's settings for Spindles and Shims (100% Concentric Infill). -3 parts come loose during printing. Both crossbars and the tallest alternate female spindl so recommend using extra gluestick or perhaps even a brim or painted supports for these parts. Printed at standard speed so it might have done better at 50% speed. Alternativley one can print the crossbars on another plate laying down.
Much appreciation to the community for all the awesome designs and remixes for this project!
Hoping this organization of all the parts and remixes into 4 plates is helpful to someone.
Files Included in 3mf: GekoPrime - Current 9-30-2023 3mf file GekoPrime - Alternate Female spindle GekoPrime - Spindle Retention Clips Schiko - Driven Spindle Retention Clip Neil J Borja - Extra Clearance Wiper Mounts Tom Cichowicz - Reinforced Main Drive Spindle Schiko - Clamps for crossbars Devon Pucel - Pins with Cotter Pins and Remixed Cradle Frame ROLS733 - 30mm Spacer CerialPhreak - PETG Wiper Blades
Похожие модели


Pastamatic Filament Spool Winder for Bambu X1C/P1P AMS (level winder with self reversing leadscrew)

Remix Pastamatic Extrusion Mnt 90 Deg Corner Brckt

Extended spindles for Pastamatic Winder

Pastamatic Leadscrew for 23mm Sub-spool (⅓ Spool)

Pastamatic Leadscrew for 33mm Sub-spool (½ Spool)

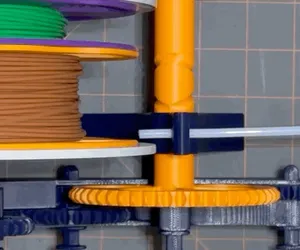

Pastamatic Leadscrew for 43mm Sub-spool (⅔ Spool)

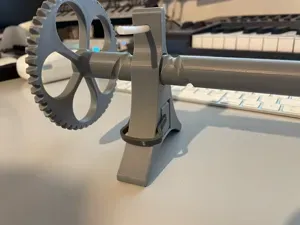

Pastamatic Clamb for Guidingstone-Cube

Pastamatic V-Slot or T-Slot Mount

Pastamatic offset centre filament guide block

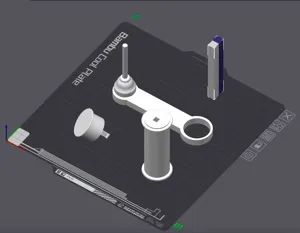

Pastamatic Manual Handle
