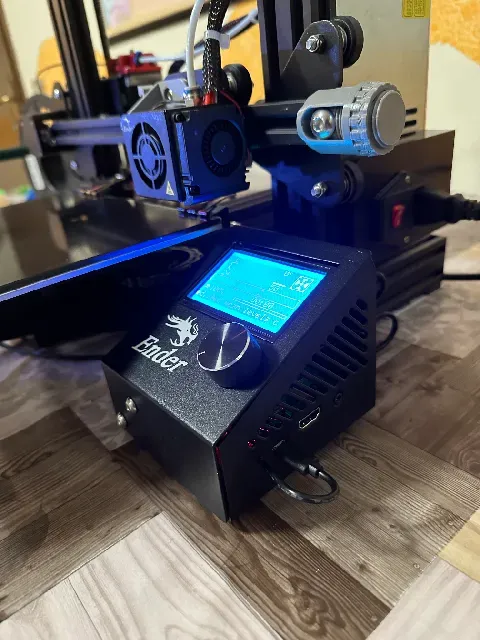

Raspberry Pi 2/3/3b+ case Creality Ender 3 LCD Enclosure

Remixed from ‘Creality Ender 3 Pro - Raspberry Pi 2/3/4 + LCD Enclosure’ by eoyilmaz, specifically v042 for Pi 2/3. Note: This remix only works for Pi 2/3 , not 4.

When mounting it to the LCD panel, you should use only 3 of the original screws. So one of the screws will not be used. I did it in that way for cosmetic purposes. Because the hole for the 4th screw needed to be in a place that makes it ugly. There is a pin that goes through the 4th whole. So the case will hold the LCD PCB properly.

Printing is pretty straight forward. I designed it to be printable without any support.

I add internaly this two things:

Buck convertet to connect direcly raspberry to printer power supply (no problem with under voltage)

https://www.amazon.it/dp/B07RGB2HB6?psc=1&ref=ppx_yo2ov_dt_b_product_details

Fan for cooling

https://www.amazon.it/dp/B07FVR3TB8?psc=1&ref=ppx_yo2ov_dt_b_product_details
