Netgear GS308 8 port switch module - wings - REMIX (M3 screws)

UPDATE 8/17/2026: I'm working on a more universal switch mount for these relay rack mounts. The idea is to have one mount that works for various switches that have a similar profile (160mm wide and approx 26.3mm tall). That would include switches like the Netgear GS308, Trendnet TEG-S80G and the TP-Link TL-SG108. The design will unfortunately not be backwards compatible with these wings, but I have several new keystone wings also ready to go for it, and there will be some other cool (optional) features as well.

Since I don't own many of these small switches, I will need some help to test the new design. So if you are interested in testing it with your switch, please send me a PM.

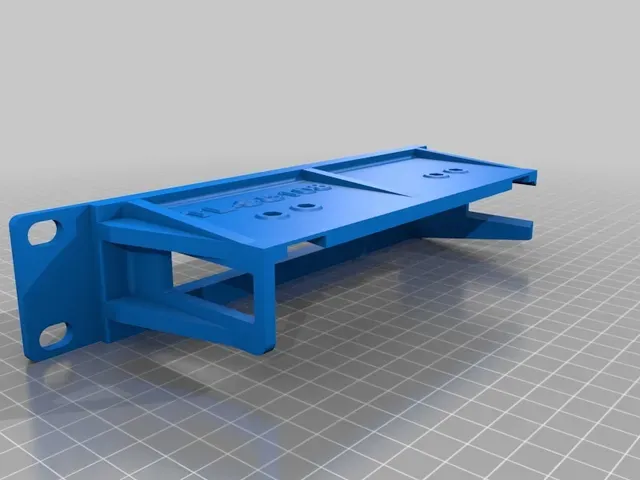

These are alternate mounts to hold Netgear GS308 Switches. The two mounting holes in these Netgear switches seem to be too tight to easily fit using M4 screws like the original design, so I made this reminx which use M3 screws to mount the switches. An M3x10mm screw and M3 nut (regular or locknut) will be needed to install the switch. The other hardware is the same.

Parts are not oriented for printing.
