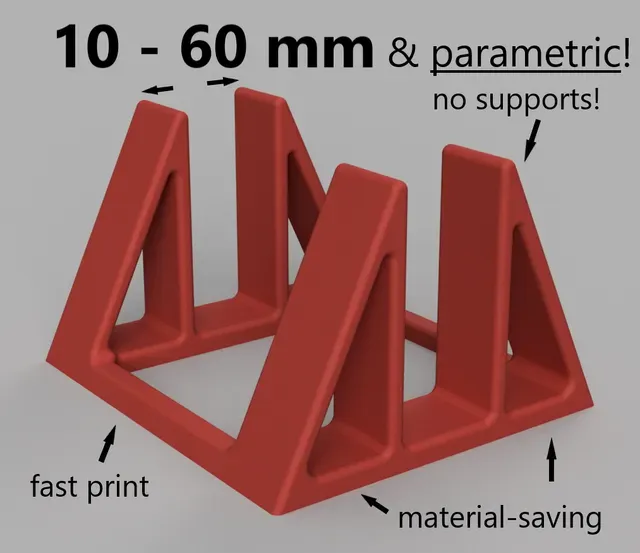

(parametric) customizable Vertical Laptop / Notebook /Mini-PC Stand

Update 25.03.2024: Added a parametric and customizable version of the stand.

Improvements The model was developed to enable fast and material-saving printing and at the same time to be stable. The print in size 25mm requires only 42g of material.

Compatibility I have provided versions for all sizes from 10mm to 60mm. So the holder fits tablets, laptops, thinclients, mini-PCs and more. When choosing the right variant, please make sure that you still need some tolerance to insert the laptop without scratching it.

Customization Fusion 360 ( free download ) is required to adjust the parameter “spacing”.

Dimensions Height: 61,26mm Width: 100mm Depth: depending on the variant

Print I printed my stand in 0.28mm layer height with adaptive layer height (+-0.04mm) in PETG. No Supports needed! I used 20% infill and 3 perimeters - the stand is therefore very stable.

Some foam rubber or felt furniture glides can be attached to the down contact side.
