Simple box for small files
Сведения о модели
- Площадка
Printables
- Цена
- Бесплатно
- Лицензия
- CC-BY-NC-SA
- Только некоммерческое использование с указанием автора; переделки — под той же лицензией.
- Форматы
- 3MFSTL
- 10 Лайки
- 43 Загрузки
- 1 Напечатали
- 1 Комментарии
- 185 Просмотры
Описание
The box is for a set of small files. Dimensions of files:
- total length ~170mm - handle length ~48mm - shaft 5mm Printer settings:
- Layer height 0.2mm - Perimeters: 3 - Infill: 15% - Supports: No I printed the box with PETG using modified "Prusa MK4 Input Shaper 0.4 nozzle 0.2 mm speed" settings - it worked well. Cover has tight fitting - in CAD it is 0.2 mm clearance. The box won't fall apart on its own - you have to open it.
Attached are two versions of cover: plain and with text. Version with text could be printed using "manual MMU" method - see attached SmallFileToolsBoxCover.3mf for detail settings:
- filament 1 - box color (first used filament) - filament 2 - text color Prusa MK4 has currently bug: Manual MMU Freezes the printer black LCD screen so using "manual MMU" method requires workaround: upload file using PrusaLink with checked “Start print after transfer”.
Похожие модели

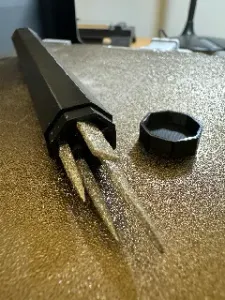

Box for small diamond files

Prusa Tool Box Inserts – Secure Sorter

SBox for MK2/3/4 - Double cantilever box
Gridfinity Box (Quick print, lite version, less filament!)

SBox for MINI - Cantilever box

Box with Sliding Lid

Small Storage Boxes for Tap, Drill, End Mill or Tools

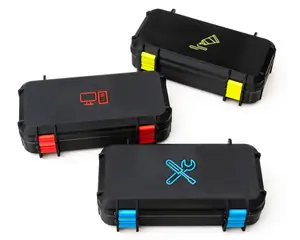

Parametric protective case / toolbox

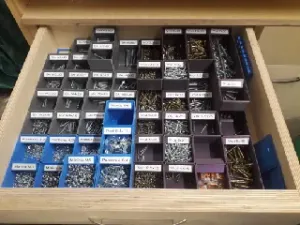

Boxes for small parts with cover
