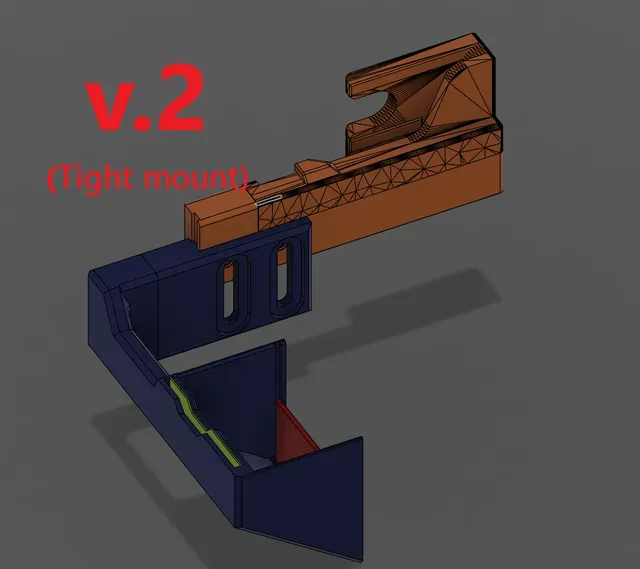

(NEW v.2) Purge bucket and nozzle wipe/cleaner for Ender 3 S1

v.2 Purge bucket and nuzzle cleaner for Ender 3 S1 .

Version 2: more tight fit mount.

To assemble the nozzle cleaner, you will need 2 M3 bolts (8-12mm), two M3 nuts , a flat piece of heat-resistant silicone (up to 2mm thick). Optionally, you may also need a small piece of foil and adhesive (pencil glue works fine).

Compatible with various nozzle lengths. From standard Mk8 to Vulcano (and analogs)

GCODE macro example:

[gcode_macro PARK_PURGE_SLIDE] variable_wipe_offset: 15 gcode:

{% set x_offset = params.x_offset|default(1)|int %}

G1 X{printer.toolhead.axis_maximum.x - x_offset} F10000

;wipe

G1 X{printer.toolhead.axis_maximum.x - wipe_offset} F10000

G1 X{printer.toolhead.axis_maximum.x - x_offset} F10000 Material : PETG is preferable, but PLA can also be used with glued foil.

Supports : Model optimized for printing, but better to add manual supports as on screenshot.

Mount to printer idea from https://www.printables.com/model/405482-nozzle-wiper-holder-x-axis-ender-3-s1
