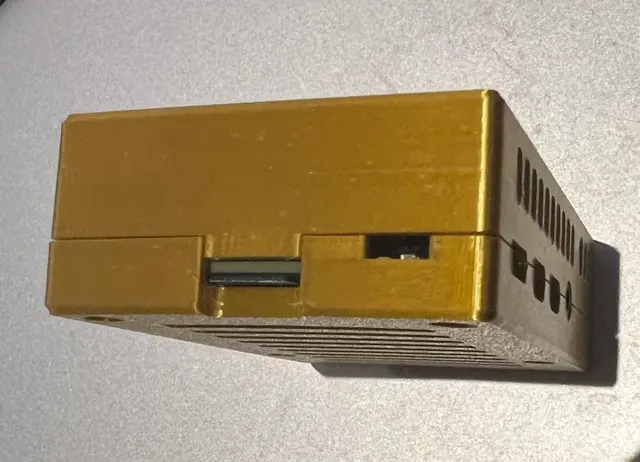

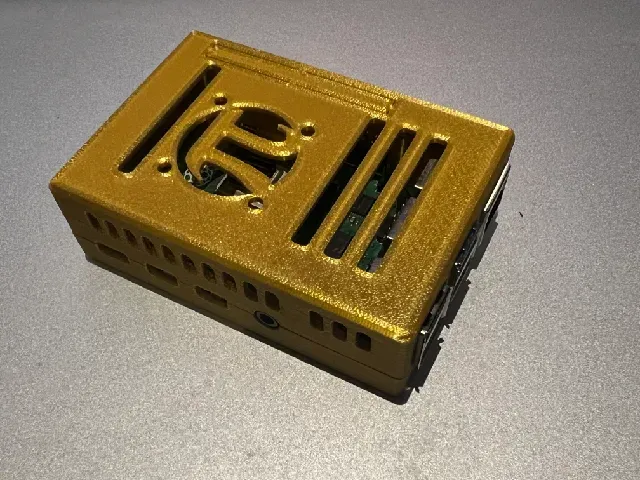

Raspberry Pi 3B/4/5 Case with fan

My set of Raspberry Pi cases for the Raspberry Pi 3B, 4, and 5 models.

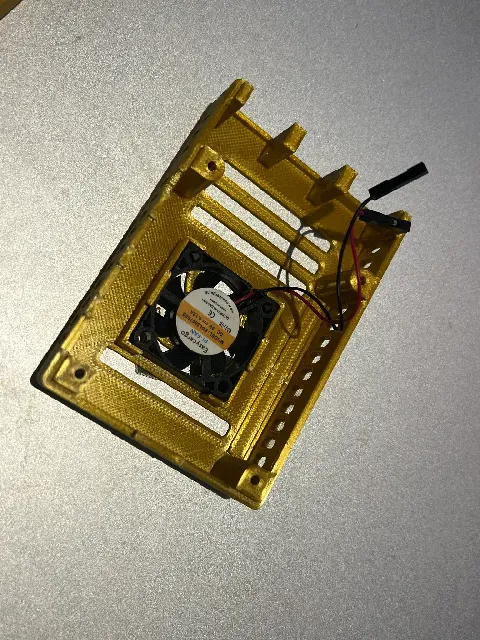

This case features a snap-in 30x30x7mm fan with plenty of ventilation for cooling.

The Raspberry Pi 5 Cover also comes in a 40x40x10mm fan option and is a bit taller to accommodate the bigger fan.

Print the right pieces for your Raspberry Pi Model:

Raspberry Pi 3B/+:

- RPI3Coverv2 - RPI3Basev2 Raspberry Pi 4

- RPI4_Cover_V2 - RPI4_Base_V2 Raspberry Pi 5, depends on the your desired fan size

- RPi5_Base - 30x30x7mm fan → RPi5_Cover - 40x40x10mm fan → RPi5_Cover_40x40 Fan - Tall If there is interest to have a 40x40x10 fan option for either Raspberry Pi 3b or 4, please leave me a comment and I'll make one.

Printing suggestions:

- Materials: PLA, PETG, ABS, or ASA (basically any) - Layer height: 0.2mm - Infill: 15% - Orientation: Flat side down (you may need to rotate) - Support: None - Fans: - 30mm x 30mm x 7mm: - GPIO connector: https://a.co/d/9miMVWI - RPi5 fan connector model: https://a.co/d/gsXFKD3 - 40mm x 40mm x 10mm (aka 4010): - GPIO connector: https://a.co/d/5emkdeE - Hardware: M2.5x6mm countersink screws: https://a.co/d/hXLFhEx or https://a.co/d/erIIAfu
