iPad high stand for Sidecar

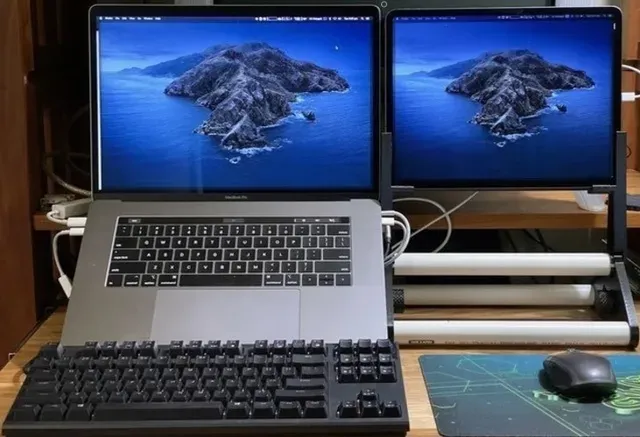

This stand is designed to hold an iPad up at the same height as a MacBook Pro when using it as an external screen (Sidecar).

It is made of two sides and connects together with 20mm plastic irrigation pipe. The length of the pipe you cut determines what iPad models it will fit but I used this with a 12.9 iPad Pro.

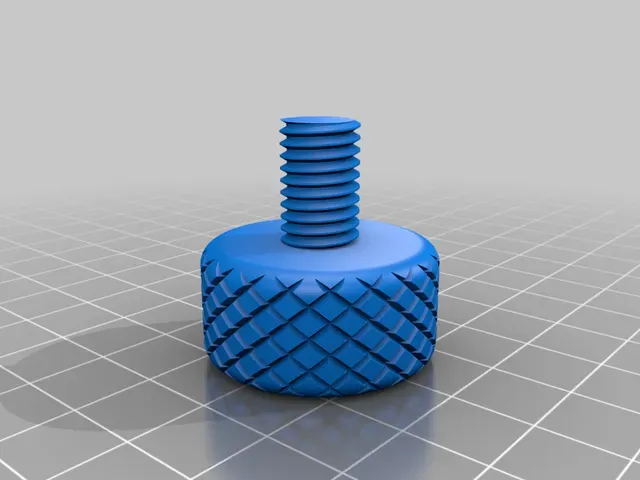

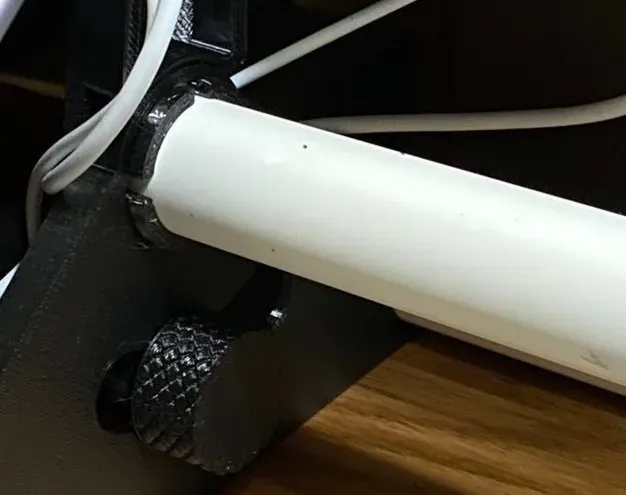

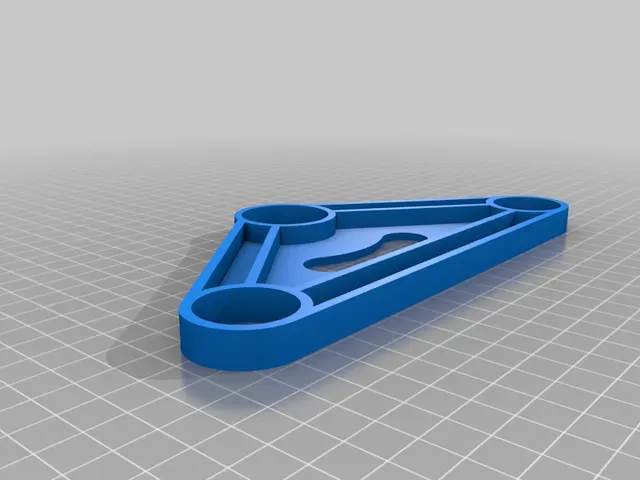

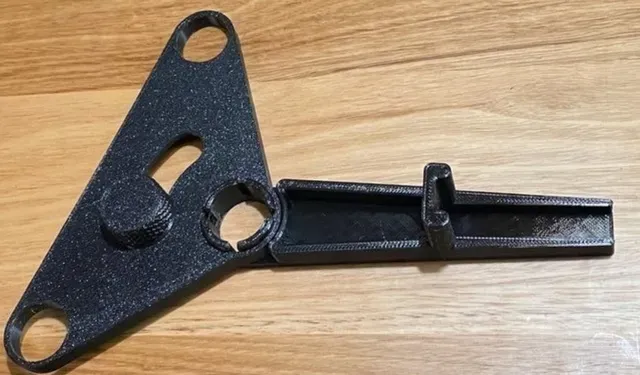

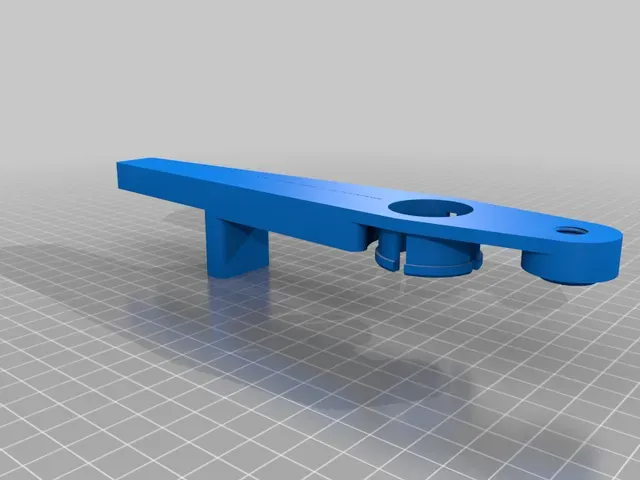

When the pivot pieces are snapped together and the pipe is inserted the pivot join is prevented from coming apart because the pipe stops it from compressing. The angle of the iPad is adjusted with the screws - if you have a tap and die set it can be good to clean the 3D printed threads with a tap and die, 3D-printed threads can be good but are usually not perfect.

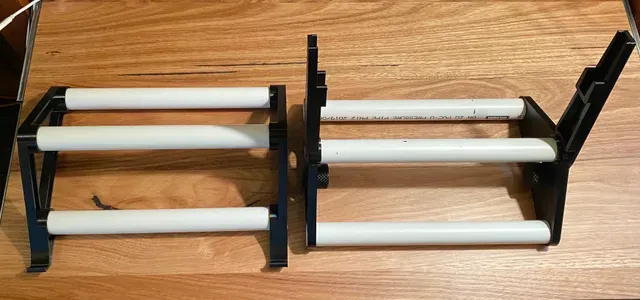

Final picture shows two stands - if you want to print the matching laptop stand you can find that in my prints too.

No supports necessary if you print with the large flat areas on the bed.

Print Settings

Printer Brand:

Prusa

Printer:

I3 MK3S

Rafts:

No

Supports:

No

Resolution:

200

Infill:

38

Filament:

Prusament PETG Black

Category: Tablet
