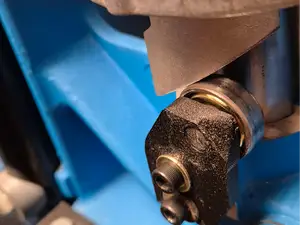

Dillon XL-650 Index Bearing Cam

Replacing the steel Index Cam on the XL-650 with this Index Bearing Cam, you get a reduced wear, lower friction and a smoother reloading. It is much easier to feel whats going on, when reloading.

To assemble, you will need:

- 1x 626zz bearing (19 x 6 x 6 mm). - 1x Flat head M6 screw, 18-20mm in length. - 1x Washer M6. - 1x M6 nyloc nut. Se photos for assembly instructions. Update July 3. 2018: Split the model into two, one for the old Dillon model with steel shell plate (photos) and one for the newer model with boss and cast shell plate. Look for “ New” and “ Old” in filename.

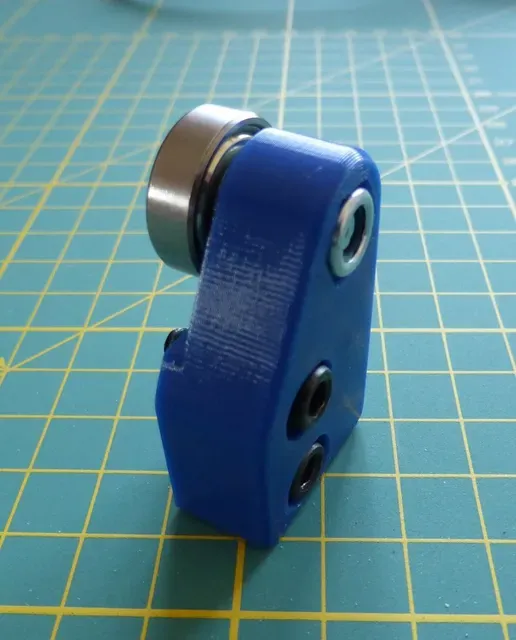

Model shown in Super Blue Devil Design PET for the old Dillon XL-650.

>> If you like it, please leave a like, rating or a tip... :)

Print Settings

- 0.20mm layer height, 30% infill - 3 perimeters, 5 top and 4 bottom layers - No support or elephant foot compensation needed
