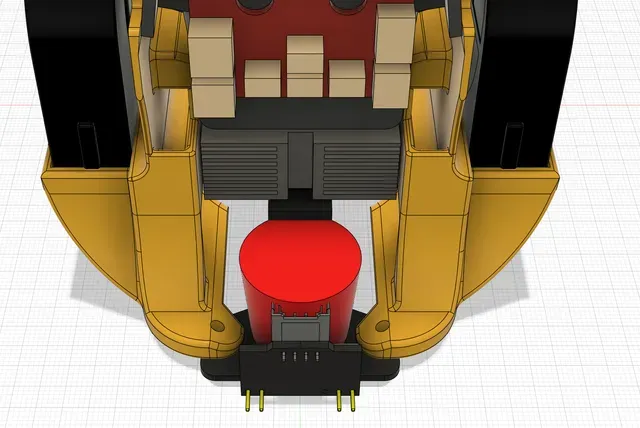

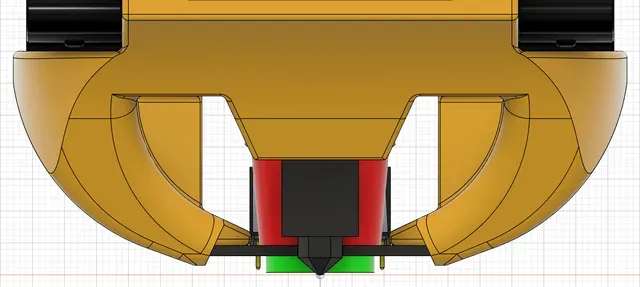

Elegoo Neptune 4/Pro/Max/Plus Fan Shroud V5 with Beacon/Cartographer mount.

Offset values should be set to:

Max and Plus x_offset: 0. y_offset: 19.

Pro and Non-Pro x_offset: 0. y_offset: 22.

Please use calipers to Measure and confirm these values at time of installation, the cad says they should be correct but may not be 100% accurate

Note: Due to Clearance Issues with the Z Uprights “Low Profile” configurations of the Cartographer and Beacon rev D are not recommended, “Standard” and “90 Degree” configurations Should have no issues if properly cable managed.

With Aux Fan Without Aux Fan

Low Profile NOPE A VERY TIGHT FIT

Standard A TIGHT FIT* HAS ROOM

Right Angle HAS ROOM ROOM TO SPARE

Recommend that the Aux Fan simply be removed as the ample cooling potential from the 2x 5015's make it redundant.
