Creality K1 Series X Carriage Bearing Washers

Removing the spring can be a solution to resonance issue but:

if you remove them, the bearing on which they were acting is free to slide left and right a tiny bit before being locked by these two screws:

credits to @Henlor for the pictures from this model: https://www.printables.com/model/607481-creality-k1-x-carriage-cad

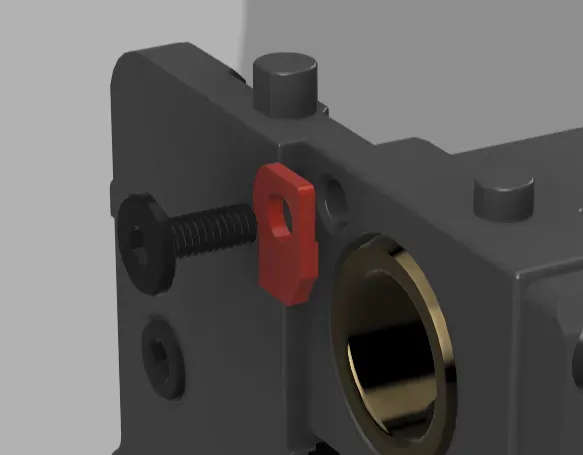

I designed two particular washers to use with the two screws so that they would hold the bearing in place and prevent unintended movements.

Print settings:

- 0.1 mm layers - 100% infill - material: i used PCPBT, use high temp resistant one

Give it a chance, it could be the solution, let me know if it works also for you!
