Rugged Storage Box (Parametric, Screwless)

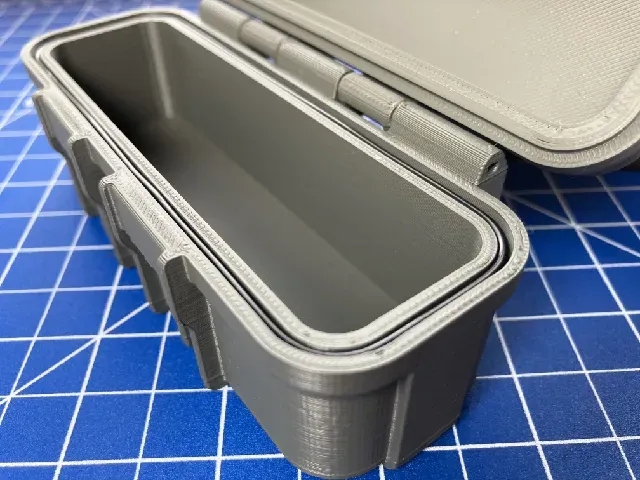

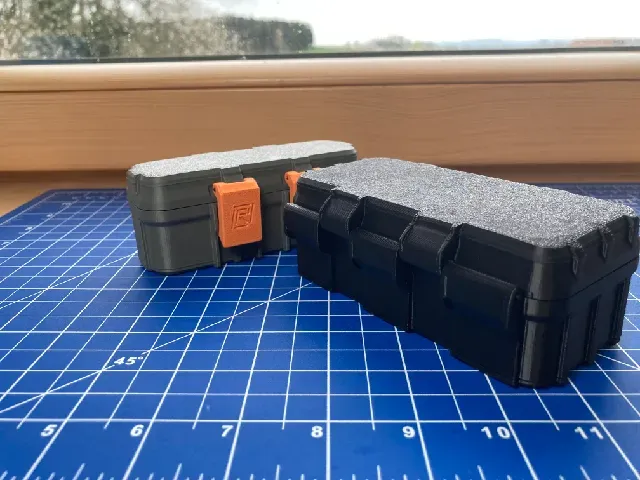

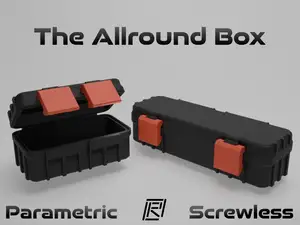

This is a Screwless, parametric, sealed, storage box.

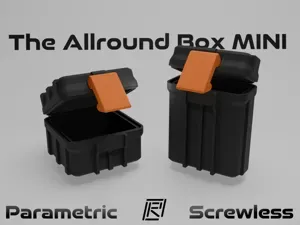

The Alround Box MINI: https://www.printables.com/de/model/851837-rugged-storage-box-mini-parametric-screwless

The box is assembeld with pieces of filament, so screws arn't needed anymore!

For the sealing, TPU can be used.

Attention:

Pay attention to the comments in the parametric design in Fusion 360!

Release Notes:

27.03.2024

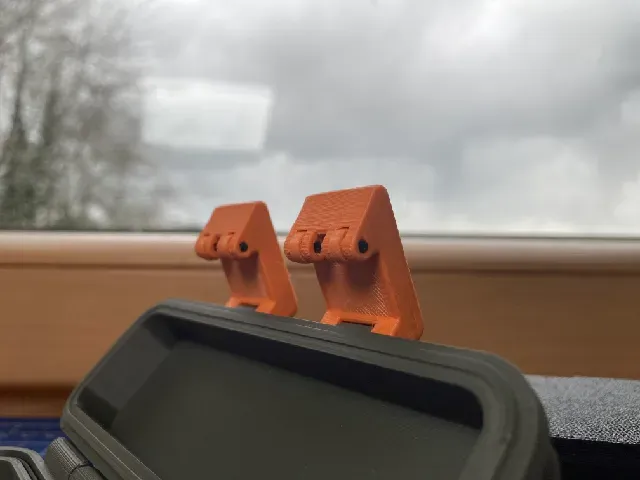

- The V1 avaliable now! - Screws are replaced trough small pieces of Filament that perfectly fit in! - The Design in Fusion 360 is parametric, most of the dimension can be changed. - The latch design stands out with it's wheels, which lock into place perfectly! 31.03.2024

- Update V1.2! - Some model issues fixed. - Better fit for non sealed boxes. - Filament holes widened. 29.06.2024

- Update V1.5! - Now you can change the latch size in the parametric fusion 360 file. - New latch option for better user experience without the TPU seal (parametric f3d) - New 3d modell renderings.
