K8200/3Drag E3D v6 HotEnd extruder mount with fan

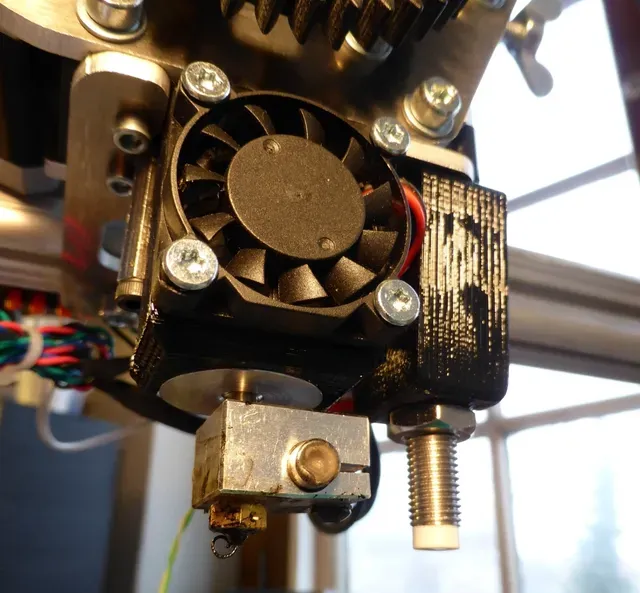

30mm fan mount for the All-Metal E3D v6 Hot-End to Velleman K8200/3Drag standard filament extruder.

I liked the original fan duct and mount from E3D-Online and wanted the Hot End to mount on the original K8200/3Drag extruder using the original parts.

Updated: 2015.01.23

- Easier to print Stronger grip on E3D cooler

Instructions

This is a one piece replacement for the original fan mount from E3D-Online.

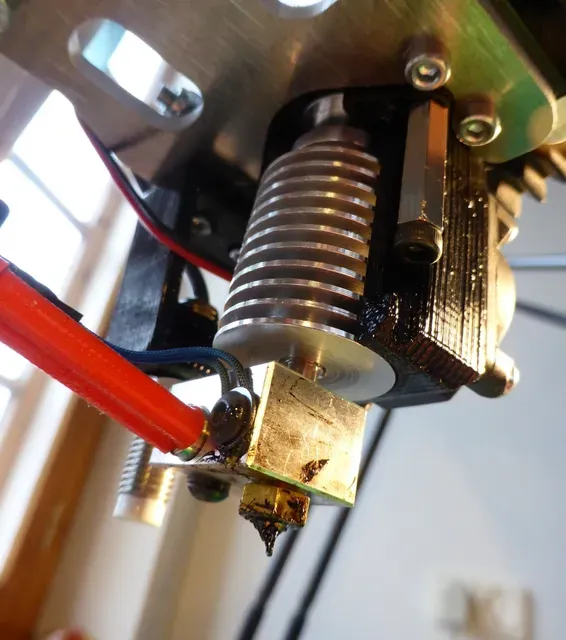

The original K8200 M3 screws and spacers can be used to mount the cool part of E3D v6.

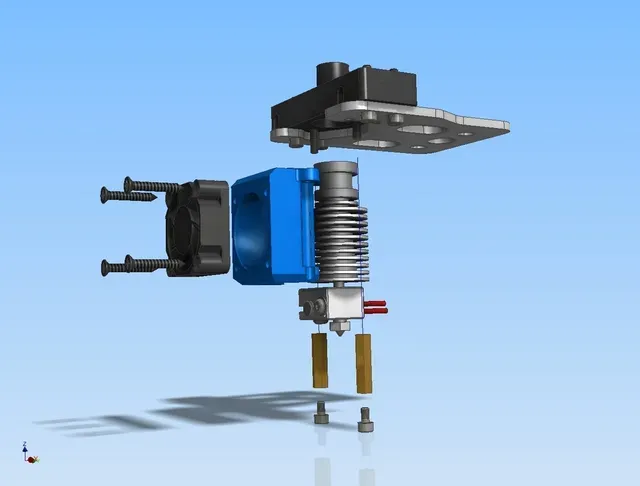

For assembly:

- 4x 2.9x19mm wood screws for fan (original screws are to long) - 2x M3x5mm screws for easy spacer mount (optional) >> If you like it, please leave a like, rating or a tip... :)

Print Settings

- 0.30mm layer height, 50% infill - 2 perimeters, 3 top and 2 bottom layers - No support needed
