Slim mount for Prusa MK4 xLCD screen onto LACK Table Enclosure

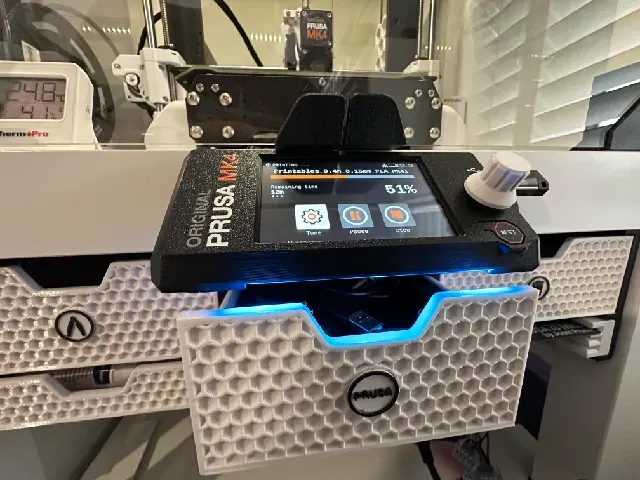

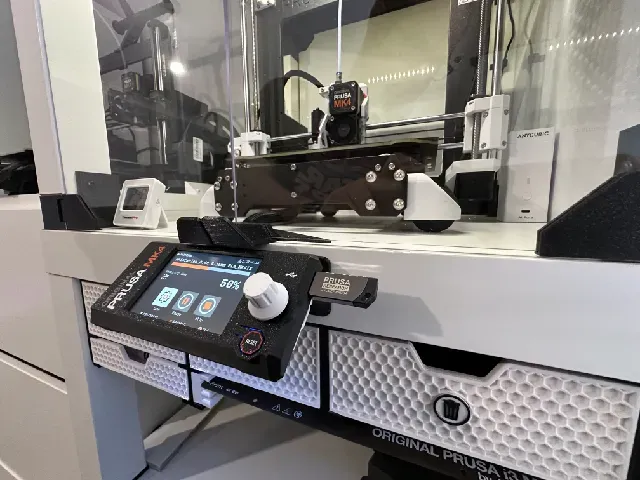

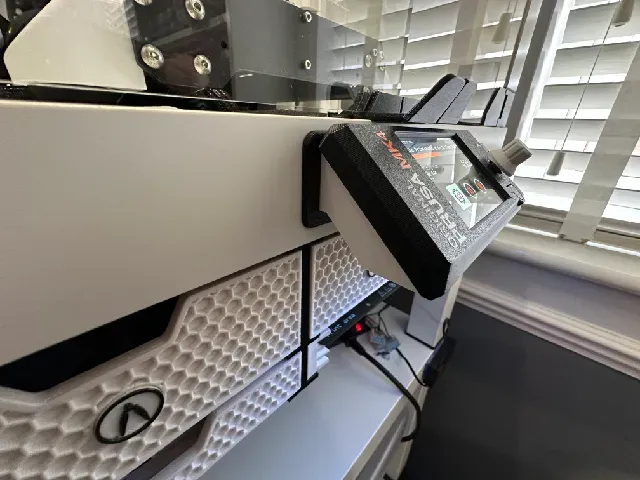

This model allows you to mount the xLCD screen using the existing mounting arms from the Mk4 Printer parts to the front of the LACK enclosure while maintaining access to drawers under the table top or if you have the Lack enclosure directly on a worktop.

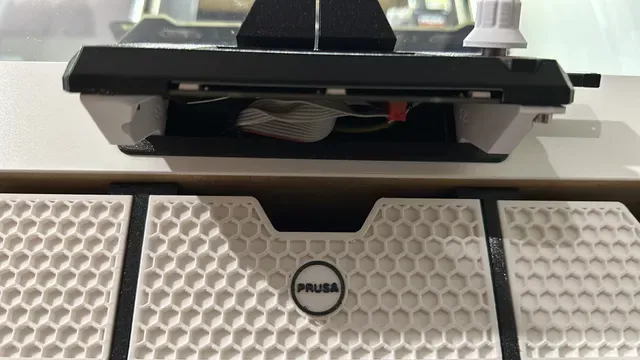

The cables are then routed inside the enclosure just under the printer and there is enough length to use the existing cable.(once unclicked from the frame).

The guide from Prusa explains this step really well in the prep section for they new enclosure.

2C. Preparing the printer (MK4/MK3.9) | Prusa Knowledge Base (prusa3d.com)

I also recommend buying some Textile sleeve 8 x 350 mm like it the guide to rap around the cables.

The Model also uses 3 x M3 heat press inserts and 3 x M3x12 Hex Screws to hold the mount in place.

I will try and upload a paper template and pictures on where to cut the recess and holes in the LACK table.
