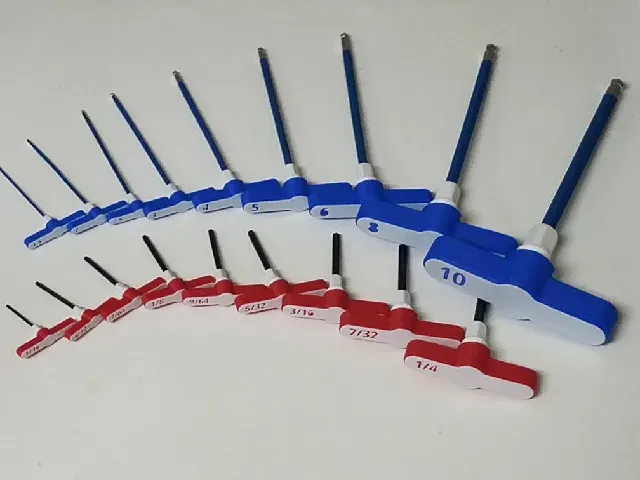

T-Handles (SAE & Metric) for Allen Hex Wrench Key (25 Sizes)

Summary:

Allen Wrench, Allen Key, Hex Wrench, Hex Key…. Whatever you call them, these are the T-Handles for them. The following sizes are available:

Metric:

- 1.5mm - 2mm - 2.5mm - 3mm - 4mm - 4.5mm - 5mm - 5.5mm - 6mm - 7mm - 8mm - 10mm SAE:

- 0.050" - 1/16" - 5/64" - 3/32" - 7/64" - 1/8" - 9/64" - 5/32" - 3/16" - 7/32" - 1/4" - 5/16" - 3/8"

Print Settings:

- I printed with PLA, 0.4 nozzle, 0.2 layer heights, 4 Walls, 20% cubic infill. - Pause on layer 4 of the handles to switch filament for contrasting text on your handle. - I rotated the stems 45 degrees and turned on supports because I was having issues with bed adhesion on the smaller stems. It is a pain to remove supports but a bigger pain to start the print over.

Directions for Assembly:

Thread the stem all the way into the handle to clean up any issues with the threads.

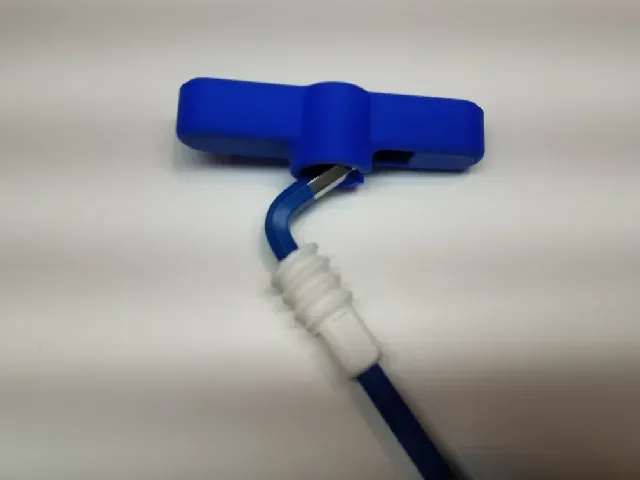

Align the handle, hex key, and stem

Slide the stem on to the hex key and the hex key into the handle.

Tighten the stem
