Shock Rebuild Stand for 1/10 Scale RC Cars

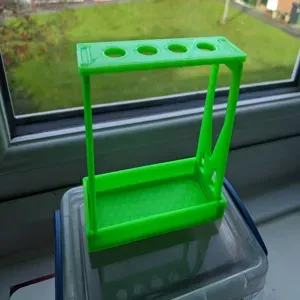

Shock rebuild stand for 1/10 scale vehicles. Designed to hold the shock bodies while the oil settles, and keep things neat during this messy job. Designed for standard 12mm shocks, like Team Associated B6/B6D, B64/B64D, Losi 22 etc. The holes are slightly bigger than 14mm, which fits most of these shocks snugly. If you want to track the original position of each shock, each hole is labeled for front/rear/left/right.

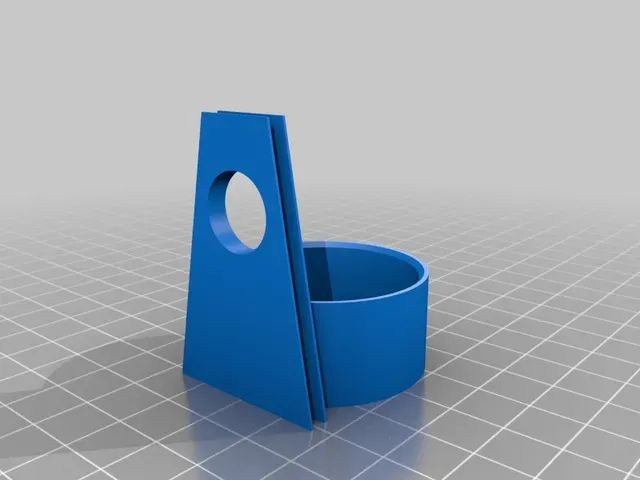

Also includes optional shock bottle holders - you can attached them at the end to hold either one or 2 bottles (if you use different front/rear oils). These fit a standard 35mm Team Associated or Losi silicone shock oil bottle. Just print either one or 2 depending on your needs.

Designed for easy printing, see the instructions.

More designs to follow, including diff stands and parts trays.

Print Settings

Printer:

anycubic i3 mega

Rafts: No

Supports:

No

Resolution: 0.3

Infill:

20-50% for strength

Notes:

The kit prints in several parts:

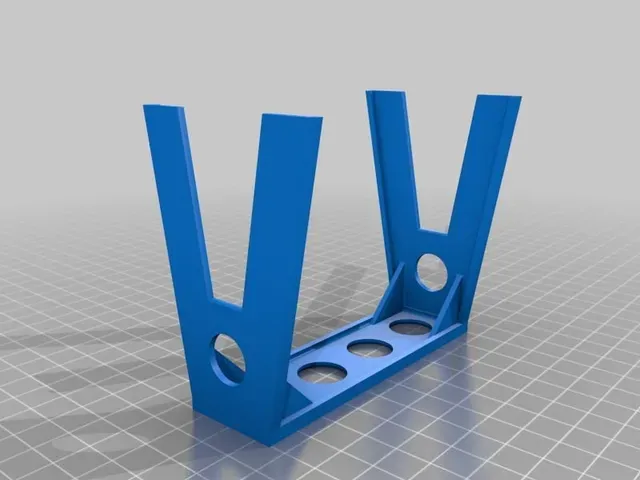

* The shock stand prints upside down - this way it needs no supports. The labels should still print ok. * The bottle holders are optional - you can print one or 2. These are printed up the right way, and again won't need supports

Printed these in PLA - plenty strong. Pick your colour to match your car or brand . I used thicker walls rather than more infill. 2 or 3 side walls and 3 or 4 top/bottom laters. I used 0.3mm layer height, as they dont need to look pretty. With this setting the whole kit takes 2-3 hours to print

Post-Printing

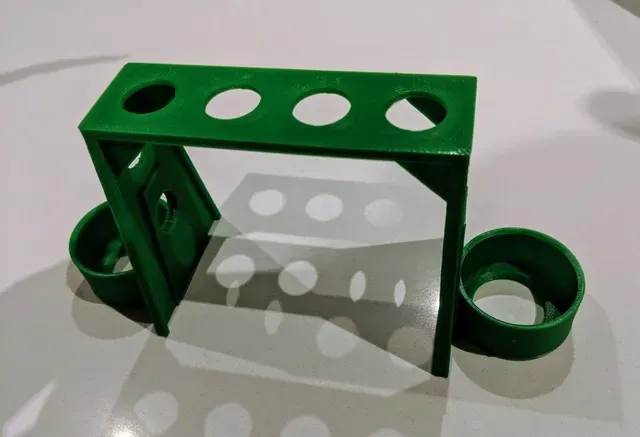

Slot the 2 bottle holders into each side of the shock stand to hold the front and rear shock oils while you work on the shocks

How I Designed This

Fusion 360 design based on caliper measurements of actual parts
