Gridfinity 2x2, 3, 4, 5 (6U, 9U and 12U) Lidded Bin for Stuff with Latch Version 2.2

These are the latest version (v 2.2) of my lidded Gridfiniy bins, with several improvements over the 1st version. These include the following improvements and new elements:

- Fully redesigned bins with a more efficient use of material

- Slightly larger opening for the doors

- New tab option for the sliding latches

- New grid option to allow stacking 1x1 bins on the larger 2x and 3x bin models.

- No supports needed (same as the v1.0 models)

- Additional bin sizes added

- Label “chips” which can be used with the grid option (new with v2.2)

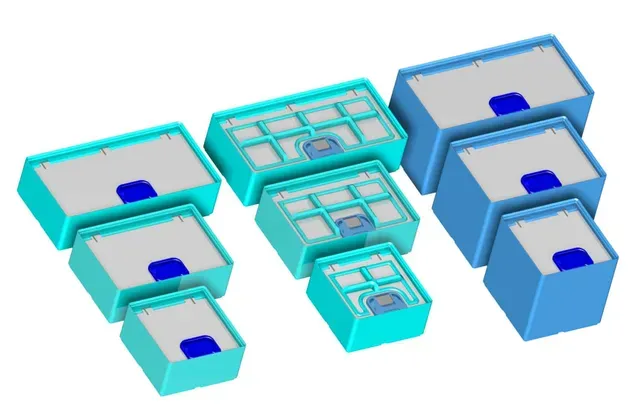

Included here are 12 types of Gridfinity bins with latching lids:

6U Bins:

- 2x2 6U

- 2x3 6U

- 2x4 6U

- 2X5 6U

9U Bins:

- 2x2 9U

- 2x3 9U

- 2x4 9U

- 2X5 9U

12U Bins:

- 2x2 12U

- 2x3 12U

- 2x4 12U

- 2X5 12U

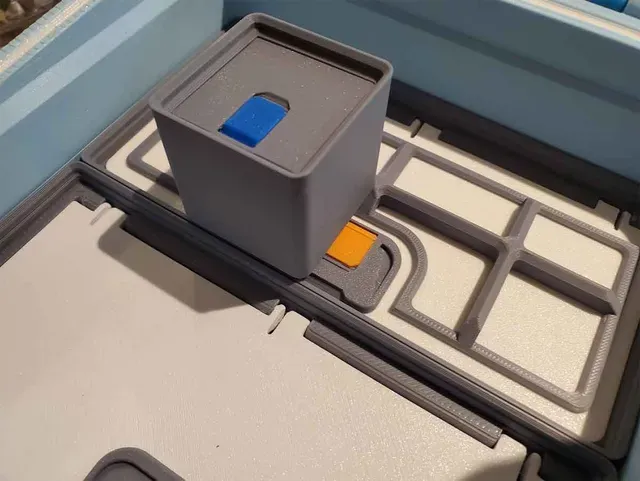

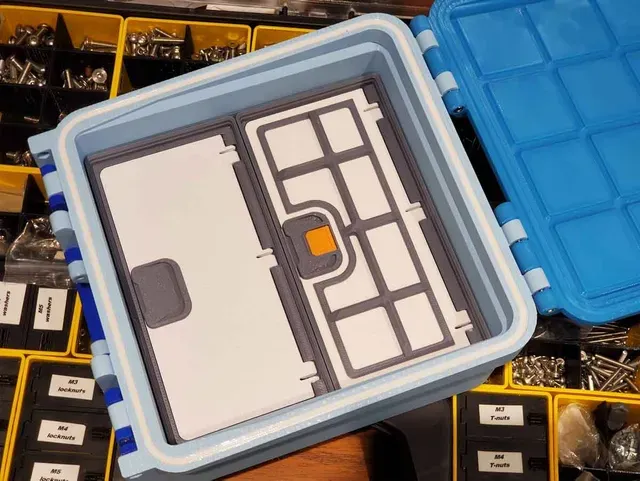

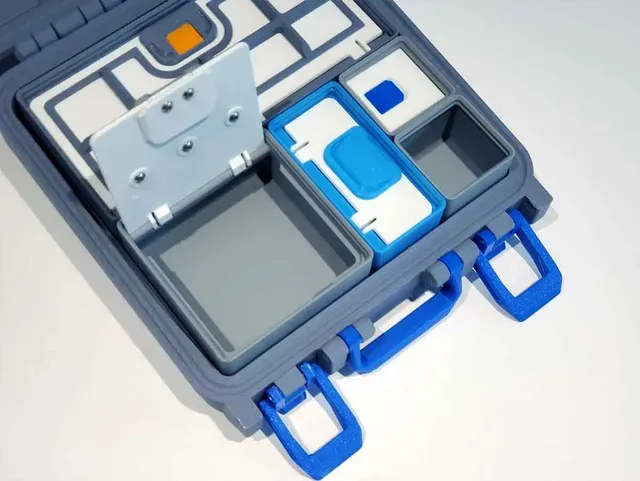

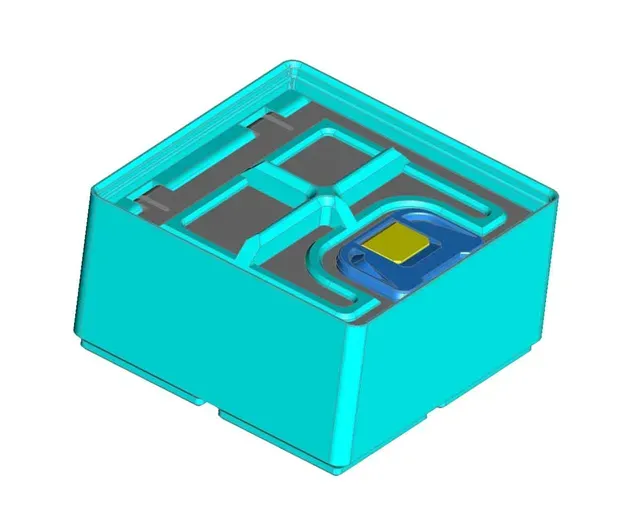

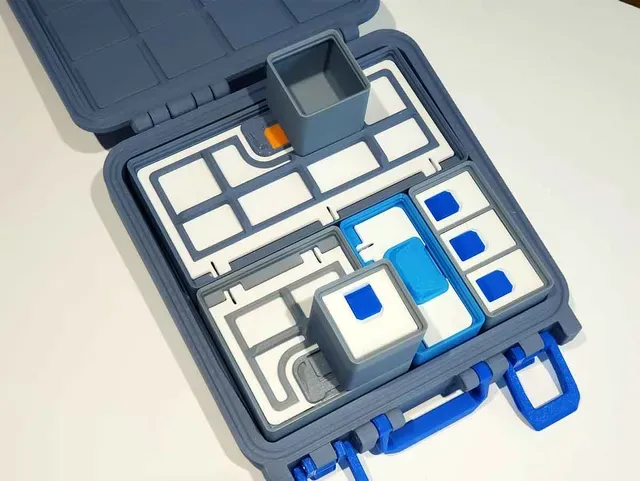

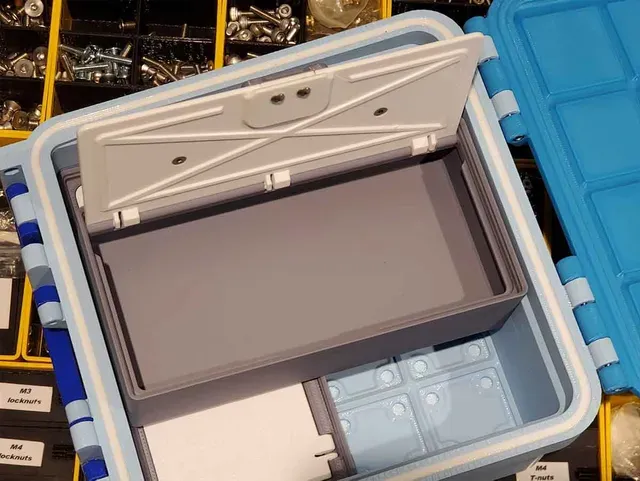

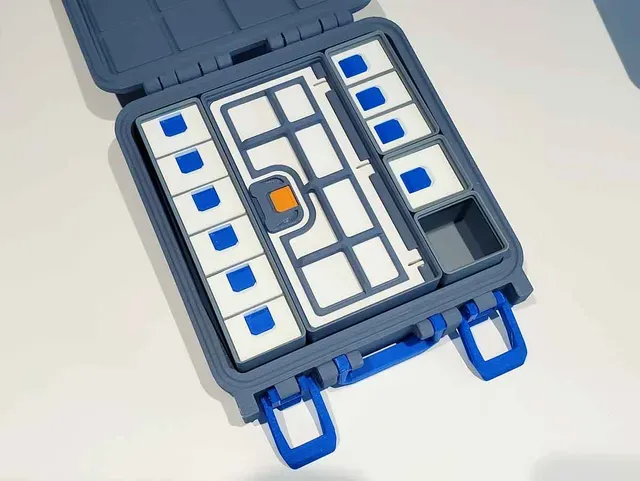

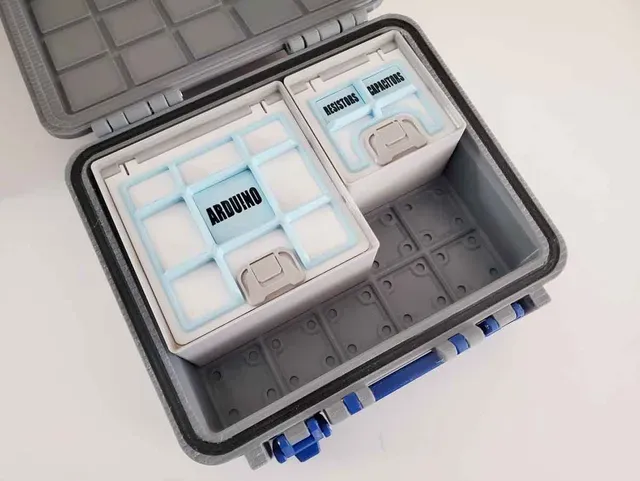

There are 2 options for the lids, one is a plain lid, and the other has a grid, which allows proper stacking for 1x1 bins on top of these bins. With the newest v2.2 version, the grids now support optional label “chips”, which install between the grids and the lids. The grids can be used without the label chips if they are not required.

Text can be added to the grid label “chips” using the text as a modifier in the slicer using BambuStudio. The animation below shows the steps to add text to the “chips” (give it time, each step pauses for 10 sec so the text can be read). The steps in the animation are numbered as well (in the bottom left corner). There are additional images showing the steps to add text modifiers to create custom labels on my blog here .

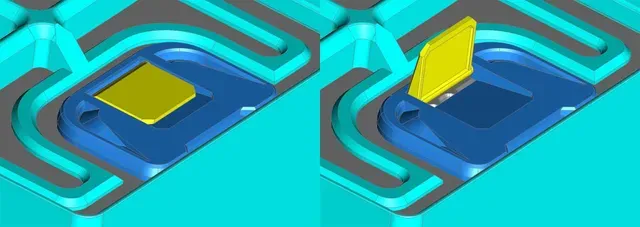

Additionally, there are two latch designs included. One is a plain latch top, and the other has a flip up tab, which can help with opening the bins (see pics).

This design requires the following hardware:

(2) M3x6mm Button Head Cap Screws (BHCS) - or any M3x6 button head screws.

If using the lids with the Grid pattern, the following additional hardware is needed:

(2-3) M3x6 Flat Head Screws - M3x6 Button Head Cap Screws will also work.

Update - There is a new alternative latch which requires no hardware (it snaps together).

If you want to try them out, they can be found in the following files:

SNAP_TOGETHER_LATCHING_TAB_SLIDE_LATCHES_V7D.stl (latching tab version)

SNAP_TOGETHER_NON-LATCHING_TAB_SLIDE_LATCHES_V7D.stl (original version without a latching tab)

They are also available in a Bambu Studio 3mf: SNAP_TOGETHER_SLIDE_LATCHES_V7D.3mf

Printing tips:

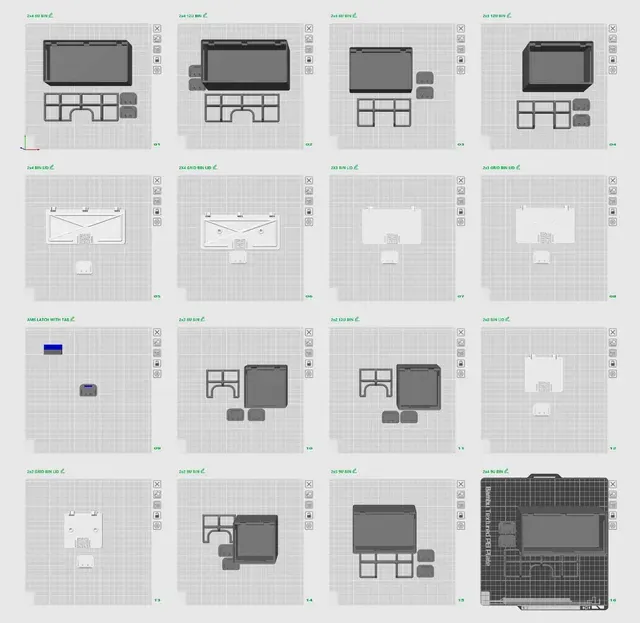

You can use the included 3MF which has all the models set up on 13 plates, including one multi-color option for the tabbed latches.

If you don't use the 3MF and manually set the files up in your chosen slicer, then I suggest using the following settings:

- Arachne wall generator
