Spine Cable Chain - Ender 3 V3 KE/SE

This is my take on a spine style cable chain for the Ender 3 V3 KE/SE. I was going for a very specific "look," and I think I've achieved it.

I've designed components for all the various mounting points.

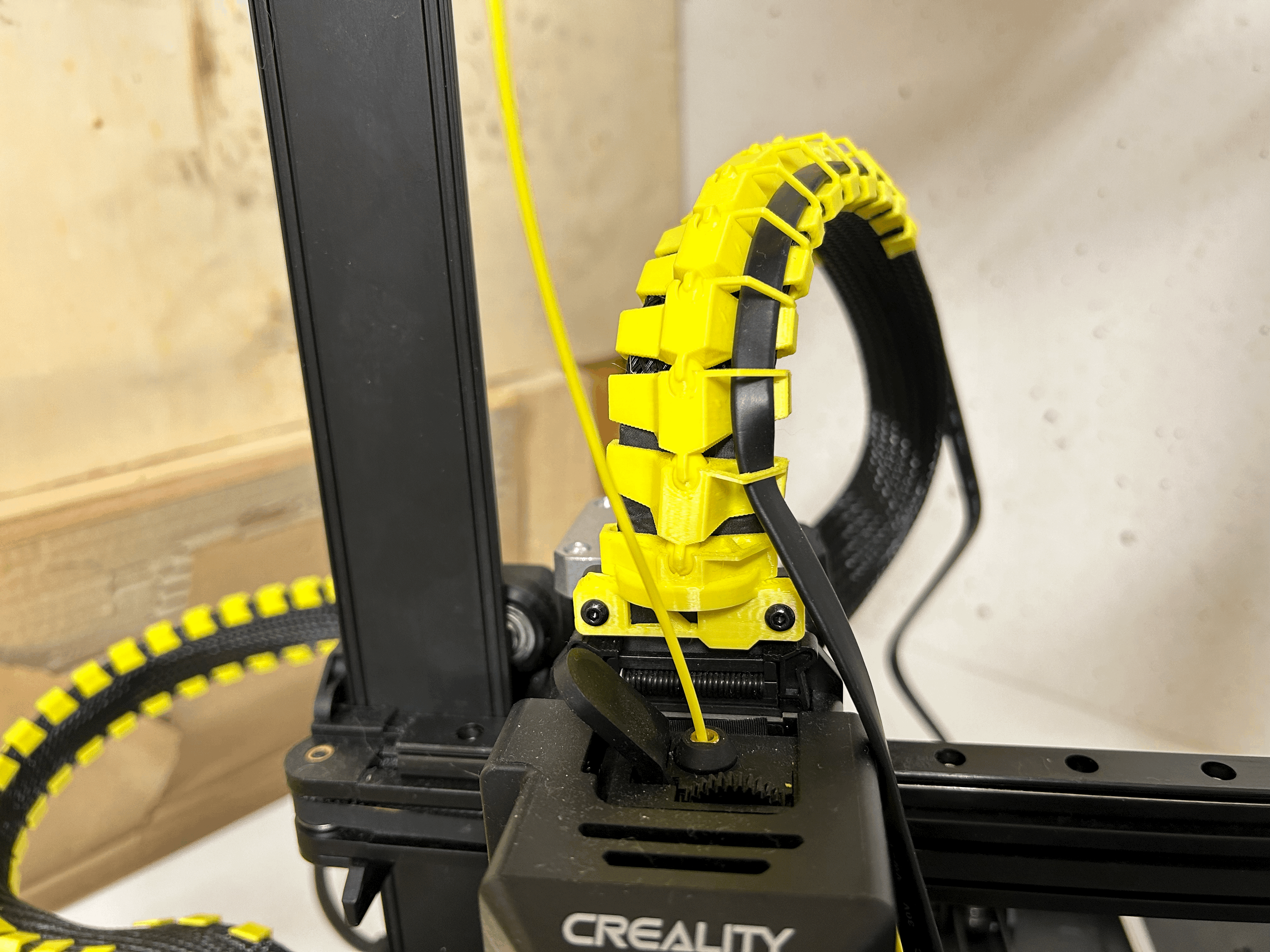

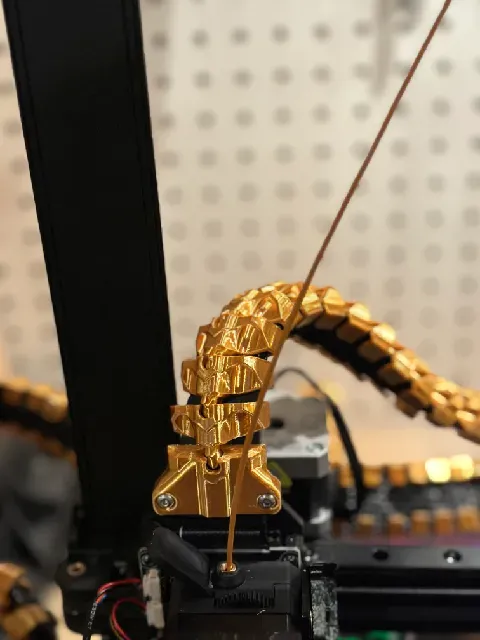

There are three mounts for the main cable coming out of the tool head: one for the tool head, one for the base, and a bridge for the X-axis gap.

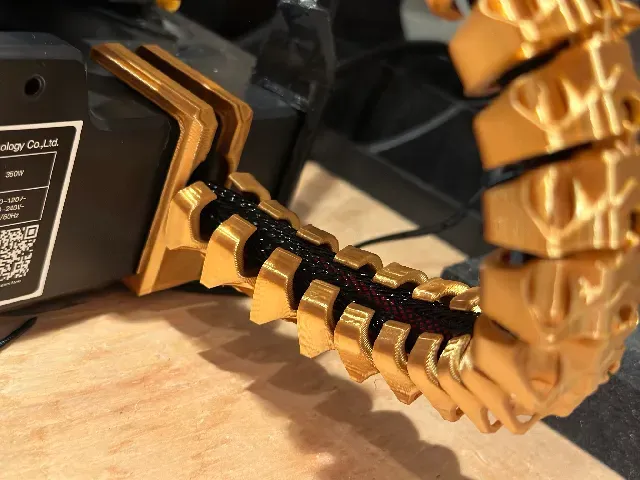

For the bed cable, there are 2 mounts: The clamp for the bed and a mount for the backside base of the printer.

You'll need 2 M3 screws and nuts to secure it. I originally had clips designed but prefer it clamped down hard - so I opted for these. Length doesn't really matter. It won't touch anything.

Join my discord! https://discord.gg/uYBuFXUmcU

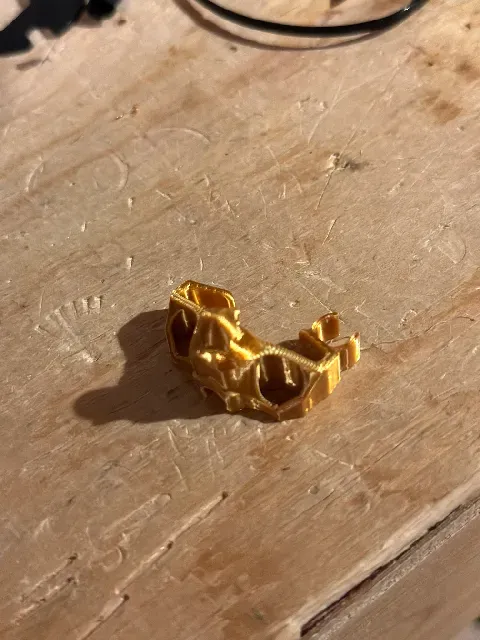

Everything in this project can be printed without supports except the bed cable base mount. This should be printed, as shown in the picture below, with a small support painted on for the ball joint.

You will need to print:

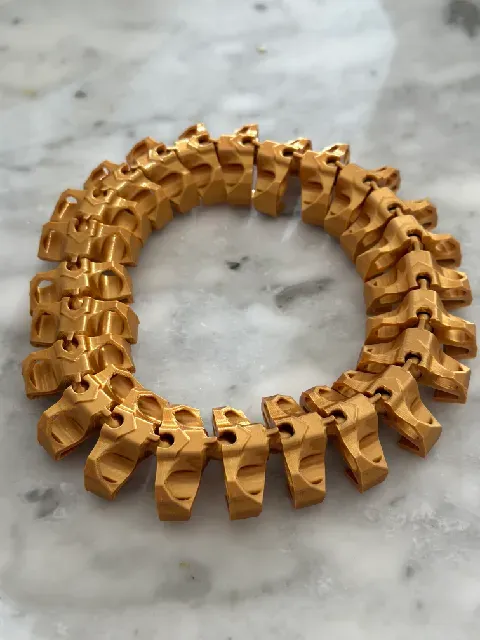

- 46 Main Links - This can be any combination of the “Standard” Mount + The zip tie or claw variants. Those are optional but handy if you have some extra wiring to hide. - 20 Bed Chain Links - 1 of each of the various mount I recommend printing everything with variable layer height. It really helps with the overhangs.

Print Settings:

- Lots of walls Thats it! Please enjoy!
