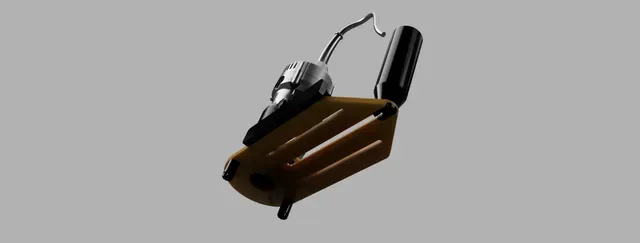

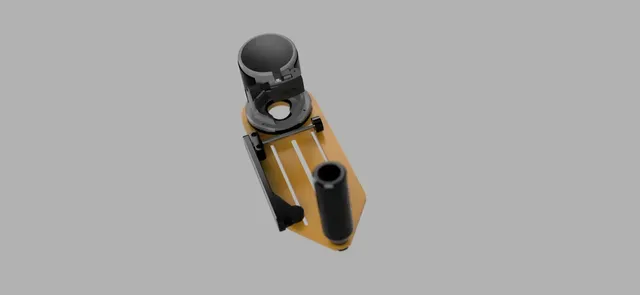

Ultimate router jig

This new baseplate allow mounting of several trim routers Tested with 65mm Makita

Compatible with :

- Makita 3709 - 3710 - RT0700 - RT0701 - Katsu - Erbauer EPR710 - Dewalt DCW600B, DWP611 & portercable 450 compact (2.4"x2.4") - Ryobi (55x55mm) P601 - Ridgid R2401, R860443B - Portercable 6430 & 6435 - Black&Decker 7604 - …

Multiple functions

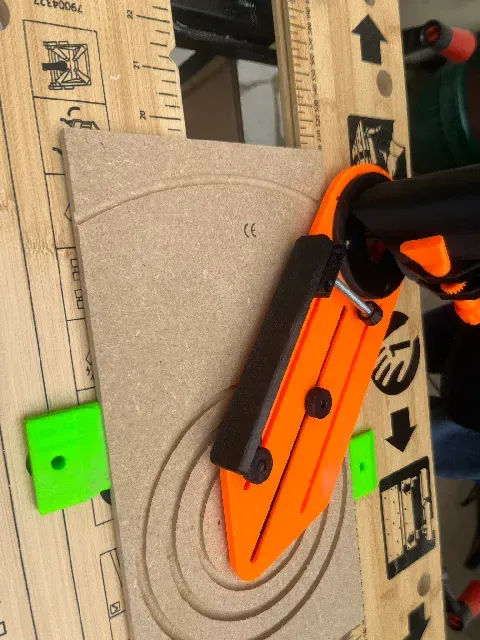

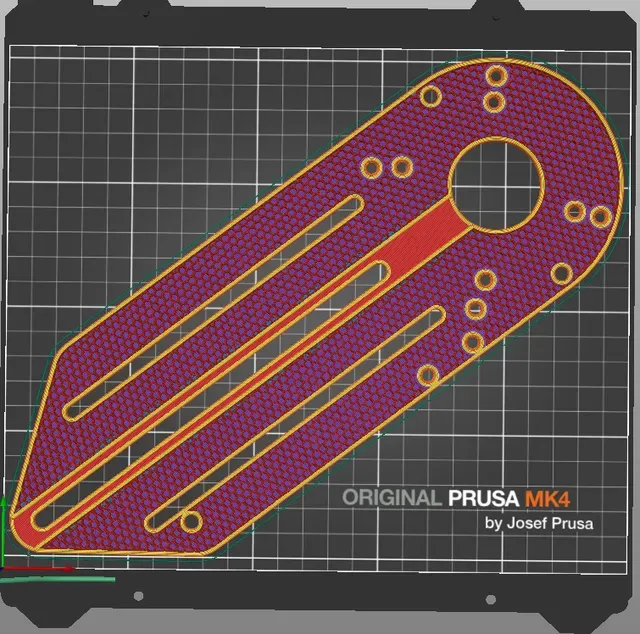

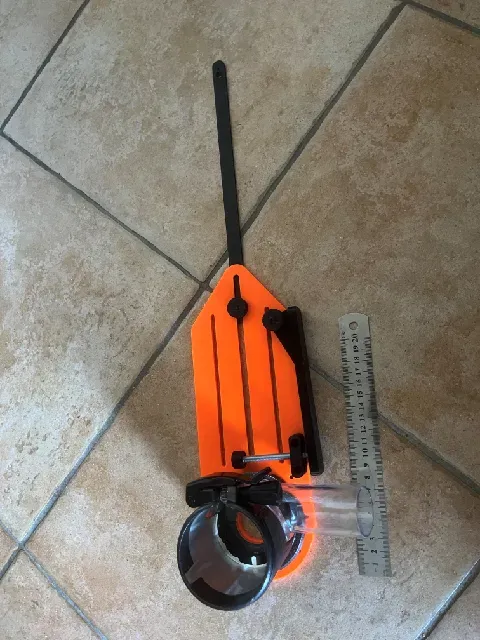

- Enlarged base plate with handle - Flush trimming - Circle cutting (short: 15 to 300 mm & long: 280 - 470 mm) - Centred mortise with sliders - Centred mortise with quick mounting pin - Grooves with millimetric adjustement system - Exhaust - Round base - Parrallel guide with adjustable flange The baseplate is designed to match MK3 and MK4 size

Insert to use :

OD =6

D2 = 5.3 or 5.4

L =4 or 5

Assembly part 1 - Base

Assembly part 2 - Flushing Base

Assembly part 3 - Handle

Assembly part 4 - Knurled nut

or

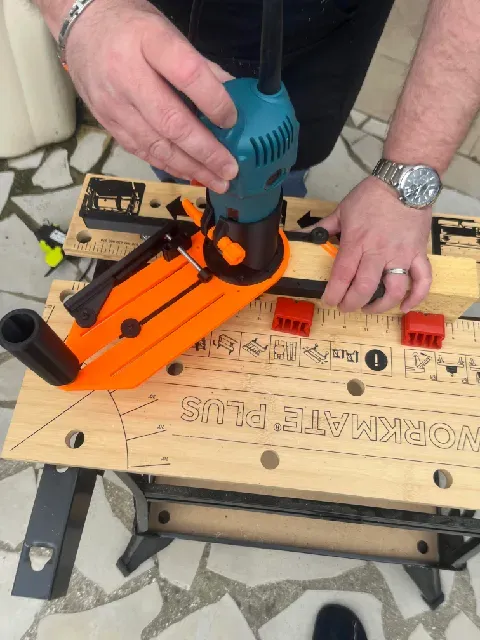

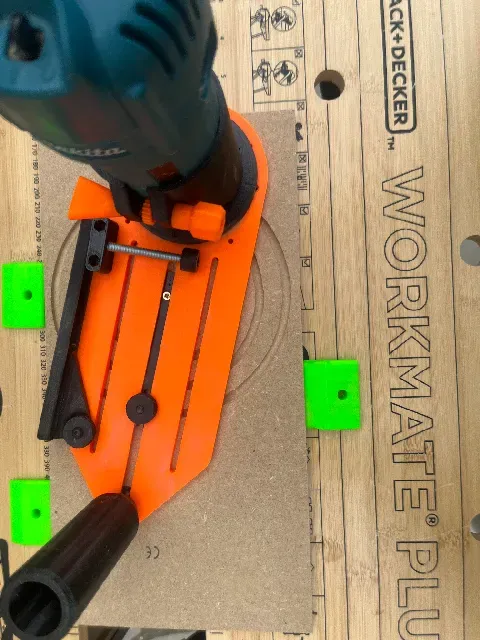

Assembly Part 5 - Parrallel guide

Hardware needed

--------------------

Type Quantity

M6 rod 50mm

M4x16 7

M5x16 2

M4 nut 25

M5 Nut 2

M6 Nut 2

M4 Brass insert Ø6x4 or Ø6x5 6

Nail or small rod for pin compas 1

Magnet Ø8x3 1

I designed also a router base compatible for 65mm routers :

https://www.printables.com/model/1086661-router-base-woodworking

v1.1 (April 19th 2024)

-------------------------

Adding round base

Exhaust modification

Adding compatibility with Ryobi & Dewalt routers

v1.2 (April 20th 2024)

-------------------------

Adding parrallel guide

v1.3 (May 8th 2024)

-------------------------

Modification of the Flush triming base to add a V shape and allow the use of M4 instead of heat insert
