Vase Mode Battery Holder AA, AAA, 9V and 18650

Vase Mode Battery Holder AA, AAA, 9V and 18650 — Фото 2 из 5

Vase Mode Battery Holder AA, AAA, 9V and 18650 — Фото 3 из 5

Vase Mode Battery Holder AA, AAA, 9V and 18650 — Фото 4 из 5

3D-модель · Printables

Vase Mode Battery Holder AA, AAA, 9V and 18650

Площадка: Printables
Цена: Бесплатно
Лицензия: CC-BY-NC; Можно печатать и изменять для себя с указанием автора; продавать модель и отпечатки нельзя.
Форматы: 3MFSTP

38 Лайки
308 Загрузки
3 Напечатали
3 Комментарии
806 Просмотры

Эта модель на других площадках

MakerWorld

Автор:CADScott

Опубликована 18.04.2024

Скачать на

Printables

Описание

I wanted a simple to print strong battery holder for my rechargeable batteries. This design holds many variants, for storing AA, AAA, 9V and 18650 batteries.

They are designed to be printed in spiral vase mode only. They are very fast to print and use very little filament

It is important that these are printed with the following settings to get a successful print:

- Spiral Vase mode. - Layer height 0.20mm (Including the first layer!). - Base layers set to 10 - External perimeter width to 0.8mm. These could be printed in any material, I used PLA and PETG.

Please use the provided 3MF print profiles with all these settings already applied, just change material to suit what you have,

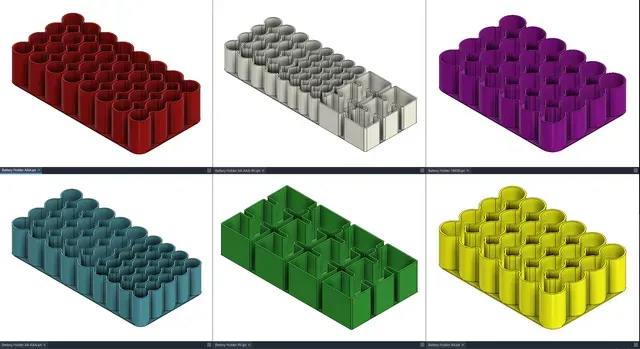

Battery Holder AA - Holds 24 Batteries

Battery Holder AAA - Holds 32 Batteries

Battery Holder 18650 - Holds 24 Batteries

Battery Holder 9V - Holds 12 Batteries

Battery Holder AA-AAA - Holds 20xAA and 20xAAA Batteries

Battery Holder AA-AAA-9V - Holds 16xAA, 20xAAA and 6x9V Batteries
