The 100 V1.1 Orbiter 2.0 mount

Remixed from: https://www.printables.com/model/719492-orbiter-20-extruder-mount-for-the-100-v11-v04

Details (ripped from original model description, [ ] indicates changed or added lines):

"

BOM

- [ 8 ea. M3x8 SHCS ] - 1 ea. PC4-M10 pneumatic fitting - [ 2ea. M3x4 heat-set inserts ] Tools

- 2.5 mm hex key - Ratchet with 10mm socket and extension (bonus for using a deep socket) - [ Soldering Iron ] Print settings:

- 0.2 layer height (0.3 first layer) - 0.5 width - ironing “all top surfaces” (optional) - 5 walls - 5 top - 5 bottom - 20% infill (I used cubic) - no supports

Instructions

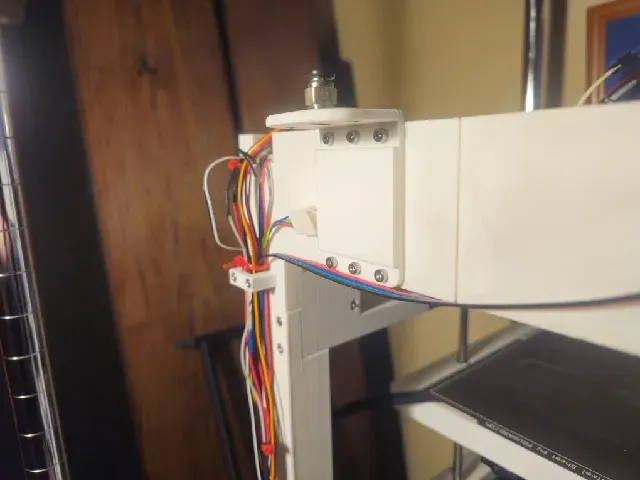

- Print the bracket - Using the 10mm socket and ratchet, squarely drive the PC4-M10 fitting into the round hole that has a diameter of 10mm until it is firmly tightened. Careful to not strip it. - Using the 2.5 mm hex key, mount the bracket to the extruder mounting point on the top-back of the printer with 6 ea. of the M3x8 screws. Don't use the hole that's now blocked by the PC4-M10 fitting (top center). Don't strip the heatset inserts. - [ Using the Soldering Iron, insert the 2 M3x4 heat-set inserts into the two extruder mounting holes. ] - [ Screw the extruder into the underside of the mount with the motor facing outwards using 2 ea. of the M3x8 screws ] "
