Ender 3 V3 KE & SE x-axis nozzle brush - No support!

The other models required support and I thought I could do it better, so here is my version. I was inspired by AlehandoroVR's model , however my design and files are completely original.

Other then the brush , no additional hardware is required. The fit for the brush is VERY tight and you will likely have to use the edge of a table to push it in.

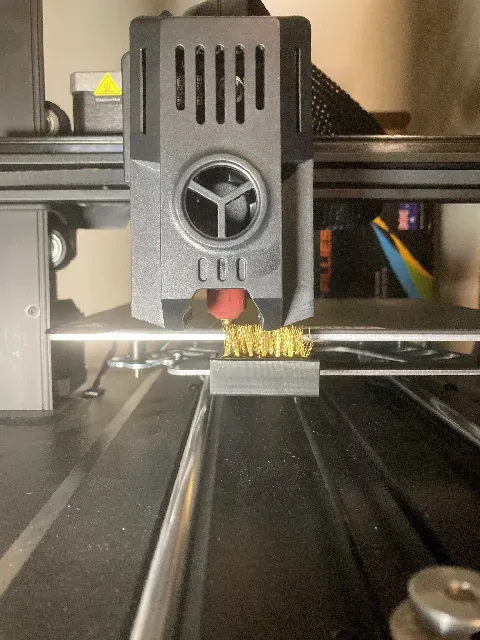

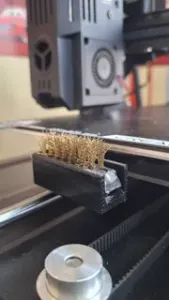

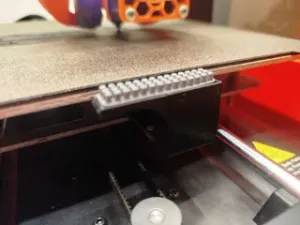

It clips onto the metal part under the bed like so. Please wait for the bed to be cool before installing, otherwise you may burn yourself

You will need to modify your start gcode. Here is mine to get you started, but you will almost certainly need to adjust the positions to match your setup.

M220 S100 ;Reset Feedrate M221 S100 ;Reset Flowrate

M140 S[bed_temperature_initial_layer_single] ;Set bed temp G28 ;Home G92 E0 ;Reset Extruder BED_MESH_CALIBRATE ;Probe bed G1 Z2.0 F3000 ;Move Z Axis up 2mm M104 S[nozzle_temperature_initial_layer] ;Set nozzle temp

G1 X-10 Y-20 Z10 F5000.0 ;Move to leak position

M190 S[bed_temperature_initial_layer_single] ;Wait for bed to reach temp M109 S[nozzle_temperature_initial_layer] ;Wait for nozzle to reach temp

G1 X57 Y-20 Z0.5 F5000.0 ;Move to near the brush G1 X107 Y-20 Z0.5 F5000.0 ;1st wipe G1 X57 Y-20 Z0.5 F5000.0 ;2nd wipe G1 X107 Y-20 Z0.5 F5000.0 ;3rd wipe G1 X57 Y-20 Z0.5 F5000.0 ;4th wipe G1 X107 Y-20 Z0.5 F5000.0 ;5th wipe G1 X57 Y-20 Z0.5 F5000.0 ;6th wipe G1 X107 Y-20 Z0.5 F5000.0 ;7th wipe G1 X57 Y-20 Z0.5 F5000.0 ;8th wipe G1 X107 Y-20 Z0.5 F5000.0 ;9th wipe

G1 X40 Y-18 Z5 F5000.0 ;Raise z

G1 X-2.0 Y20 Z0.28 F5000.0 ;Move to the purgeline position

G1 X-2.0 Y145.0 Z0.28 F1500.0 E15 ;1st purge G1 X-1.7 Y145.0 Z0.28 F5000.0 ;Move next to 1sh purge G1 X-1.7 Y20 Z0.28 F1500.0 E30 ;2nd purge G92 E0 ;Reset Extruder G1 E-1.0000 F1800 ;Retract

G1 Z2.0 F3000 ;Move Z Axis up ready for print

G1 E0.0000 F1800 Let me know if you need help working out the code (or anything else)

My print settings:

- 3 top and bottom layers

- 3 perimeters

- 20% gyroid infill

- 0.2mm layer height (on a .4mm nozzle)

In 3d fillies black PLA+

UPDATE LOG (DD/MM/YY):

30/4/24 - Updated G-Code

As with all my models, if you wish to sell this design get in contact and we can make an agreement
