92mm Fan PCI Support

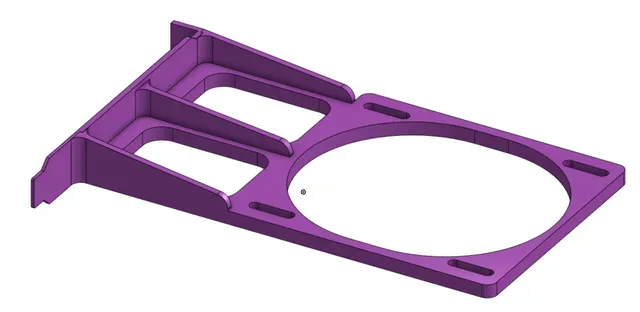

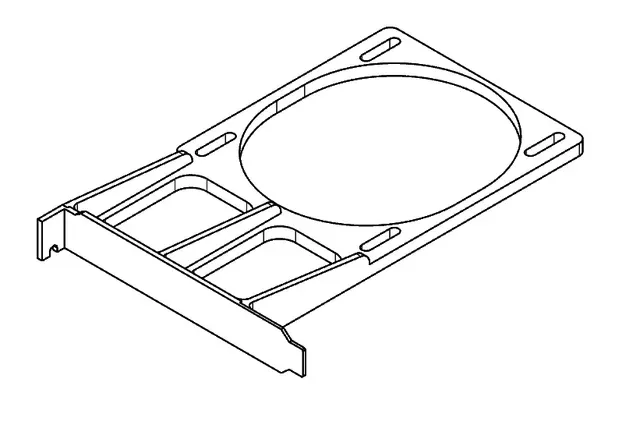

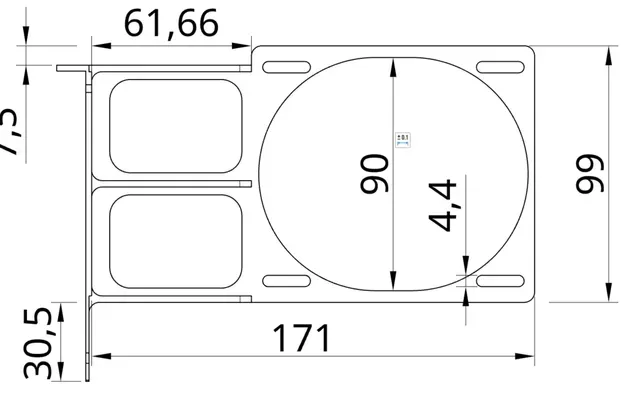

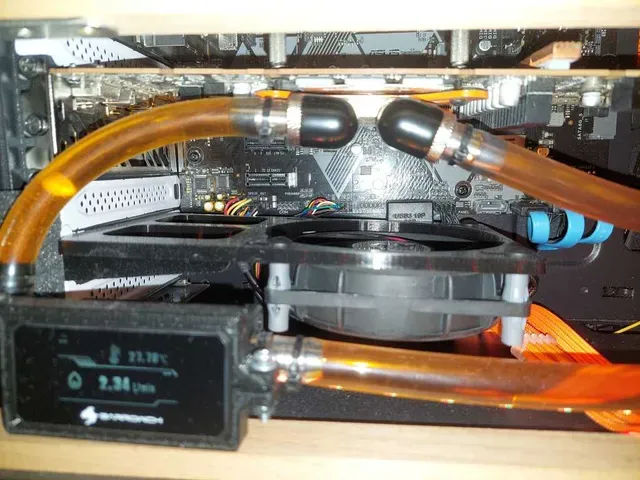

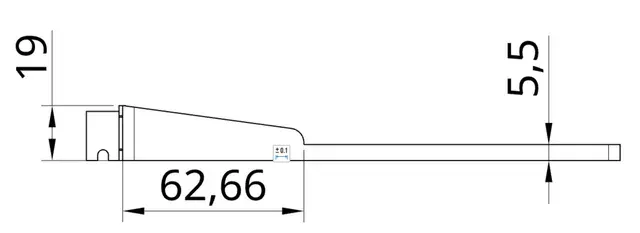

Here, a PCI fan support for 92mm fans, designed to be placed under the GPU. The last two pictures have the relevant dimensions.

All fan installation cuts, permit the fan to be moved about 15 mm horizontally, allowing it to be placed under the desired components.

Two STL files included:

One for direct PCI slot installation ( identified as 92MM FAN PCI.stl ) , and other without PCI slot cuts, intended to be drilled and bolted to those PCI slot metal covers ( identified as 92MM FAN DRILL.stl - yellow background image).

The bolted part is recommended, as the printed PCI slot cuts are quite fragile.

UPDATE: Now available: A new design with louvers. The two new files are identified as GPU_Fan_Louvers_Drill.stl & GPU_Fan_Louvers.stl.
