Portable dice tower and storage (print in place)

Сведения о модели

Площадка
Printables
Цена
Бесплатно
Лицензия
CC0
Общественное достояние: можно печатать, изменять и продавать без указания автора.
Форматы
STEPSTL
  • 496 Лайки
  • 3 324 Загрузки
  • 35 Напечатали
  • 51 Комментарии
  • 9 682 Просмотры

Автор:Chirimorin

Опубликована

Описание

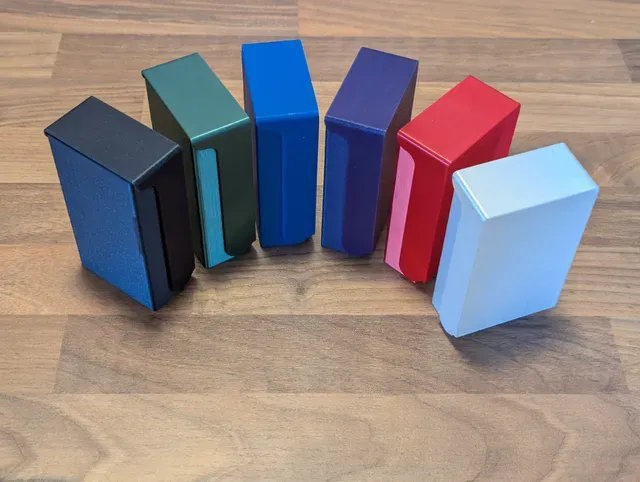

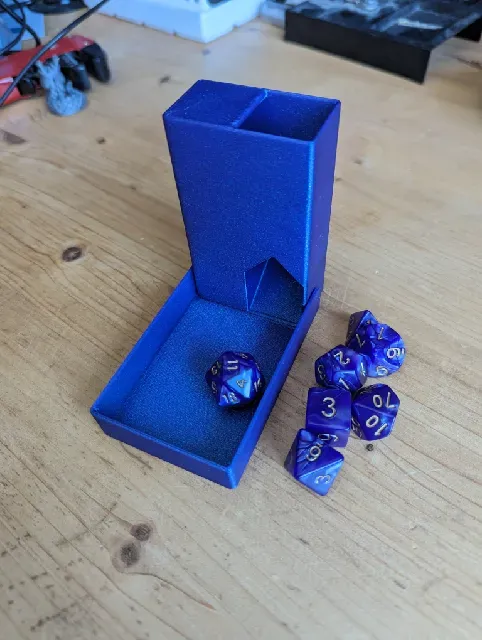

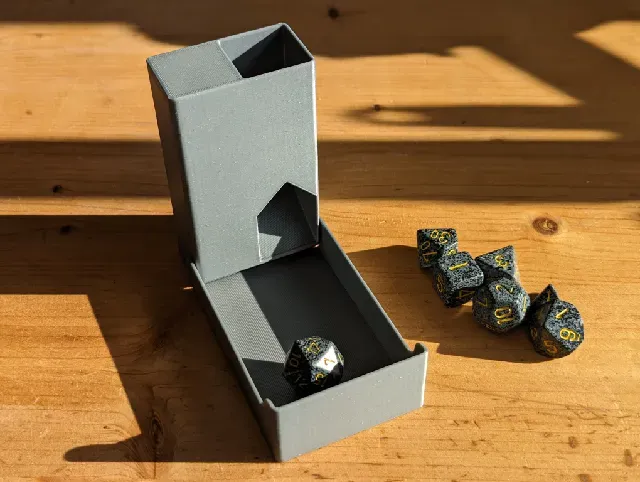

This is a simple and very portable dice tower. Small enough to fit in a pocket (may vary on your pocket size), yet fully functional as a dice tower. Including a hinged lid that doubles as the dice tray and enough space inside to carry your favourite set of 7 standard sized dice along with it.

The entire model prints in place without supports (0.25mm horizontal clearance), ready to use right off the build plate!

Version 2 is now available!

- The lid now fully closes off the holes, no more small dice falling out! - The lid now snaps closed so it won't fall open if you lift it by the lid. - The hinge is no longer visible from the inside of the tower and it's longer so it doesn't pop out as easily. Designed for the following print settings, but it should print fine with most standard profiles:

- 0.2mm layer height - 2 walls - 0.4mm line width - No supports (max overhang is 45°) - minimal infill (or none, if your printer can do 25mm long internal bridges without problems). To easily store the dice:

- Close the lid most of the way and hold it there

- Insert your dice

- Close the lid all the way
