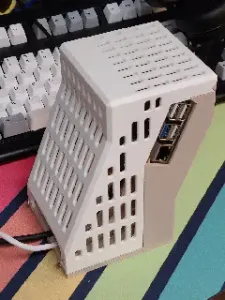

Orange Pi 5 Pro Case

The Orange Pi 5 Pro was just released, and I got my hands on one.

However, there were no cases yet! So I made one!

I am also selling this case on my Etsy, for those that want that option: https://diamondgdesignco.etsy.com/listing/1724018933/orange-pi-5-pro-case

This case was originally designed around using the POE Hat from the Raspberry Pi 5, but this will work just as well without the POE Hat.

Grab the base, then grab the top of your choice. Some have a GPIO slot, some do not. I've separated them into 2 folders.

PRINT SETTINGS

Print with 3 walls, material of your choice. Use a high resolution so that the clips print properly, and so the vents come out cleanly.

Use short M3 bolts to secure the board to the bottom piece.
