Raspberry Pi Zero 2 W Clipping Case for Prusa

This is Marius ’ “ Slim Raspberry Pi Zero 2 W Case ” with a spacial backplate that can interlock on 3030 extrusion clips (themselves based on Shaun Doe ’s “ Prusa MK3 / MK3S / MK3S+ LCD cable clip “).

I’m using it to run a minimal Octoprint on a Raspberry Pi Zero 2 W. See images!

Includes:

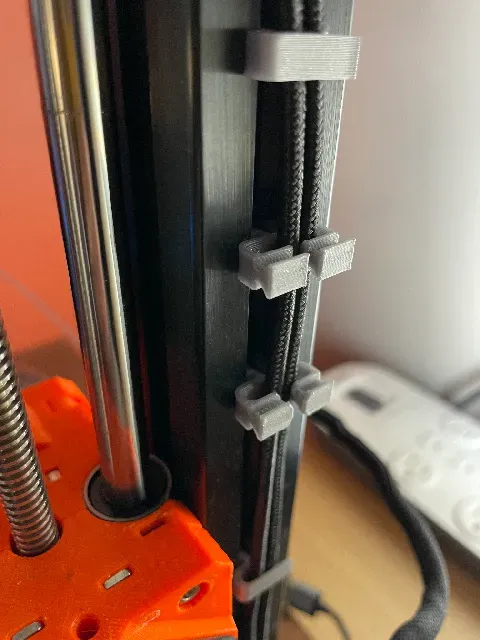

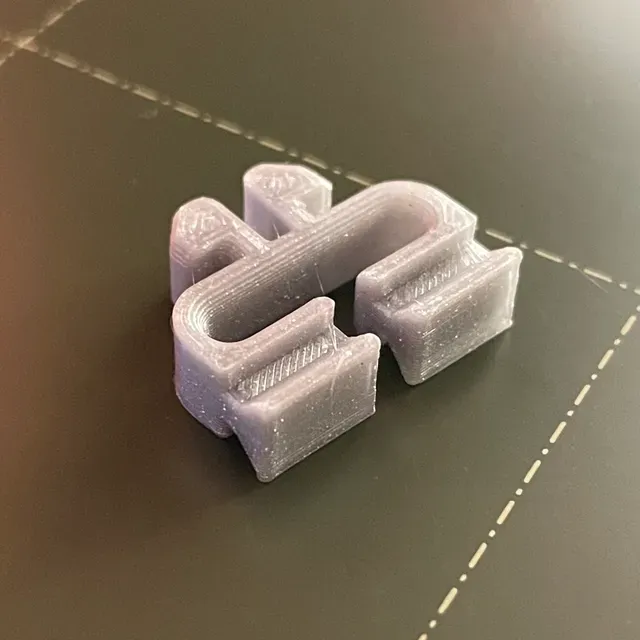

- Backplate (back) case with female interlocks ( 01_backplate_interlock.stl ) - Twisting 3030 extrusion clips with cable passthrough: - With male interlock for the backplate ( 02_clip_wire_interlock.stl ) - Without any interlock, to hold cables ( 03_clip_wire.stl )

Not included:

- Frontplate (top) of your choice from Slim Raspberry Pi Zero 2 W Case - 4x M2.5 screws (M2.5x8 should be fine)

Print and assembly instructions

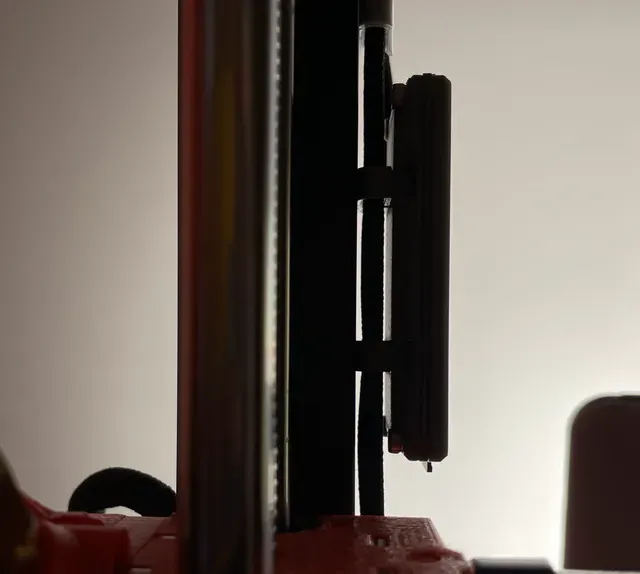

- Print 1x backplate ( 01_backplate_interlock.stl ) - Print 2x interlock clips ( 02_clip_wire_interlock.stl ) - Print clips, as desired ( 03_clip_wire.stl ) - Assemble the case (backplate, frontplate, 4x screws) - Attach the 2x interlock clips to the extrusion and snap-in the cables - Slide in the case over the interlock (adjust clips as needed) - Use extra clips to fasten cables along the extrusion
