Talon Claw Raider/Side Magwell

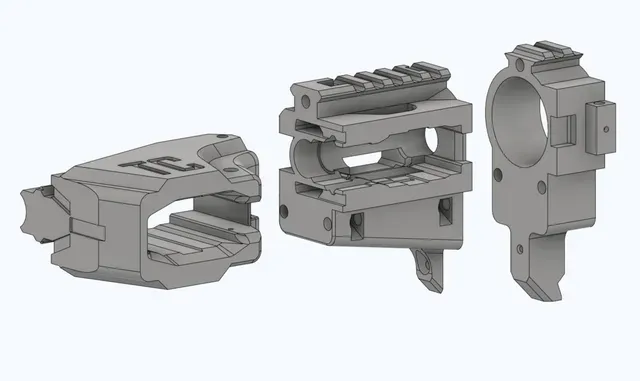

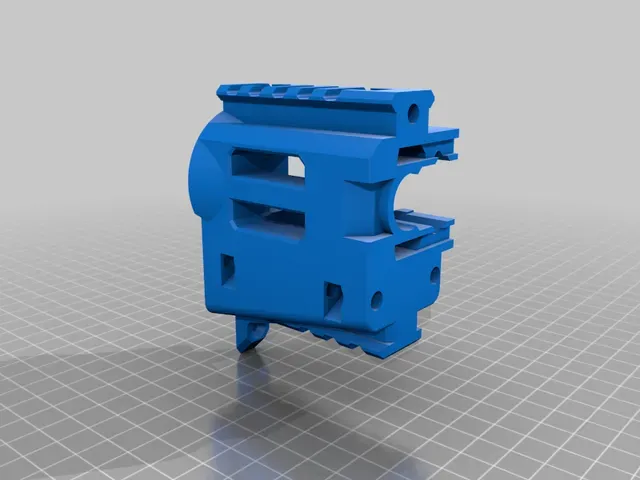

A Raider magwell for the Talon Claw. This kit replaces the entire magwell area of the TC, as well as the foregrip and muzzle.

I recommend you print the 'RaiderFront' and 'RaiderForegrip' parts at 70-100% infill with Gyroid pattern and 4 or 5 walls. The rest of the parts can probably be done at 20-40% Gyroid 4 walls.

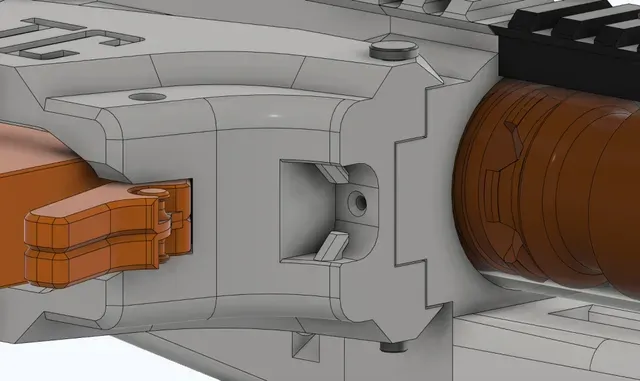

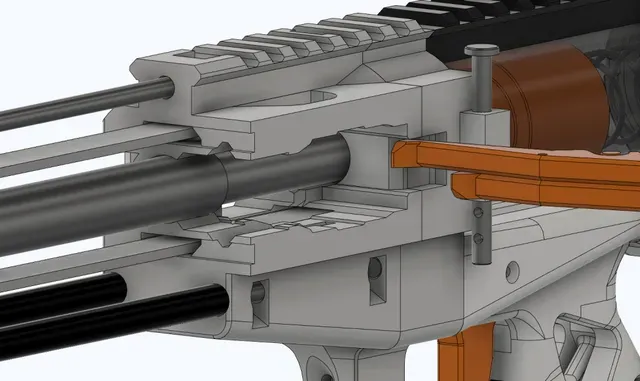

To secure the RaiderMagwell part to the RaiderFront part, you can either use a 4-40 screw or a takedown pin (or both if you feel like it).

In theory, you can use this kit on a Caliburn if you use the foregrip from Slug's original full-length Raider magwell ( https://www.thingiverse.com/thing:3957863 ).

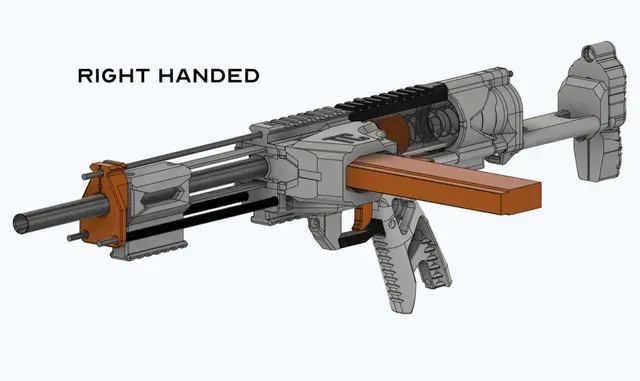

There are left handed and right handed versions of this kit, as well as versions that have rail on both the bottom and top of the magwell, or rail on just the top.

This kit uses standard priming bars, rambases, rams, and barrels.

If you wish to print and sell this item, please contact me for licensing. I can be reached on Discord (Sillybutts#5905), Reddit (u/SillyTheGamer), or by Thingiverse comments.

Some images provided by SlackerFour1

Print Settings

Printer Brand:

Creality

Printer:

Ender 3

Rafts:

No

Supports:

No

Resolution:

200

Infill:

70-100

Filament: FusionFilaments PLA

Notes:

Gyroid infill pattern, 4 walls.

Category: Mechanical Toys
