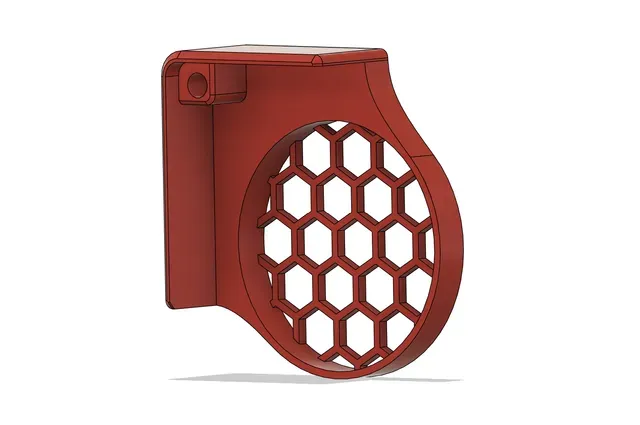

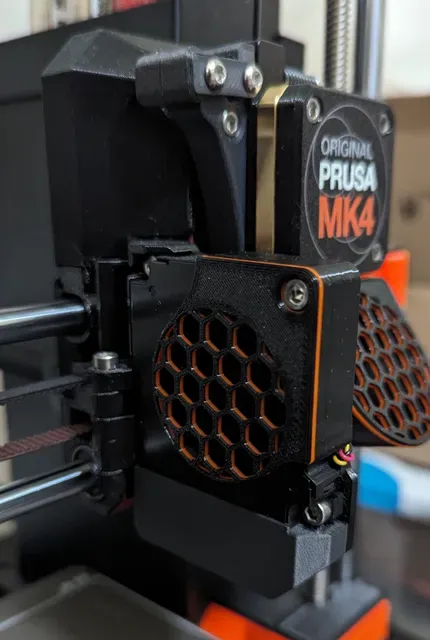

This part covers the print fan mainly for safety.

There are two variations:

MK4 print fan cover-A:

This version is the simplest design. You need an M3x16 to install it. Printing is very easy, and no support is required.

MK4 print fan cover-B:

This version has a counterbore to sink the M3 bolt head down. You need an M3x12. The print is easy. You do not need support. To avoid support, a 0.2 mm film covers the hole in the model. This is intentional. You need to poke it through with a small Allen key or something after printing.

I also added another model, MK4 print fan cover-B mod, to accommodate an improved fan door like this one.
