Pocket Slingshot

The idea comes from the original pocket slingshot that you see on ebay and amazon.

I was thinking i could do a better job and make it customizable with an addon to use arrows and steady grips.

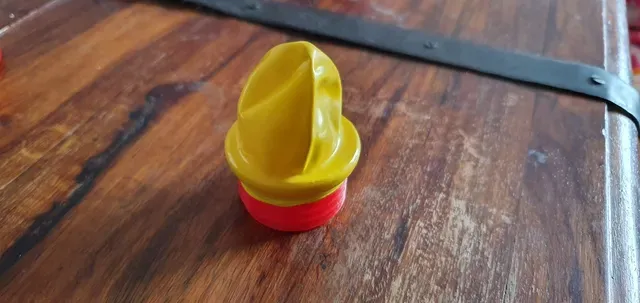

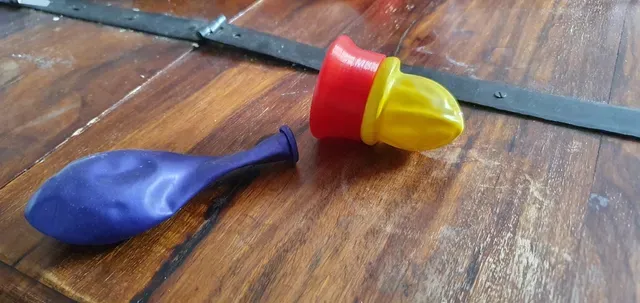

-For this you can use a balloon instead of the molded latex pouch that the original pocket shot comes with.

-You can cut a elastic yoga band and use that instead of the balloon, the yoga band are much stronger than a balloon.

-The piece that you can shoot arrows through has a hole that is 7mm, standard arrows should fit through it.

-Must use support if you want to print the pieces with handles, and infill should be 100%!

UPDATED: One handle have a crosshair (tube to look through) it centers in 5 meters (crosshair is about a 3 degree angle)

So if you shoot something at 5 meters it should hit its mark :)

THE POCKET SLINGSHOT IS NOT A TOY AND SHOULD BE USED RESPONSIBLY!

Print Settings

Printer Brand:

FlashForge

Printer: Guider II

**Resolution:**

0.2

Infill: 40 (handles 100%)

**Filament:** [ ](http://www.amazon.com/s?url=search-alias&field-keywords=eSUN+PLA+eSUN&tag=thingiverse09-20)[ eSUN](https://www.amazon.com/s?k=esun+filament&linkCode=ll2&tag=thingiverse09-20&linkId=ee95e18399f58ca8cf2c8c2b4b912c0c&language=en_US&ref_=as_li_ss_tl) PLA [ eSUN](https://www.amazon.com/s?k=esun+filament&linkCode=ll2&tag=thingiverse09-20&linkId=ee95e18399f58ca8cf2c8c2b4b912c0c&language=en_US&ref_=as_li_ss_tl) Red & Black PLA+ Notes:

Support is needed to print the handles, if you dont want the handles then no support is needed.

Post-Printing =============

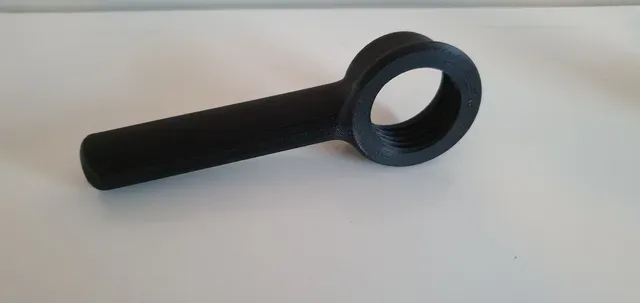

Here is the one with the handle and the one without a handle.

The handle should be printed with 80-100% infill

And the handle needs support to be printed.

No problem to penetrate a beer can.

Category: Hobby
