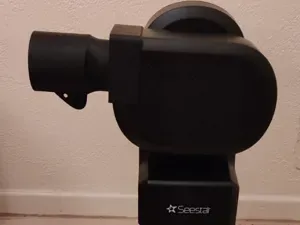

Seestar S50 telescope threaded filter ring with adapter for customized dew shield

** Preferred material: PLA Pro/Pro PLA+/PETG **

Use your 2" filter ring with my dew shield for your Seestar S50 telescope. I have designed a filter ring with an adapter that can fit my customized dew shield. The dew shield has an inner groove where the shield fits snugly over the filter ring. The dew shield is very light so that the motor mount is not stressed. The dew shield will slide over the ring lip one way only.

- Print the filter ring with 0.12mm layer height to get smooth threading for your filter. This should be printed with supports. - You can print the dew shield with a 0.2mm layer height. No support is needed for the dew shield. I would recommend printing all the filter rings for your filters at once so that you do not have to deal with unscrewing the filters.

********* Version 2 update

I designed version 2 with two windows inside the ring so that you can rotate the filter (using the filter teeth) since it was difficult to rotate the filter into the tight space. Please print the filter ring with normal supports everywhere so that the supports are also printed inside the windows. The dew shield was also re-designed to go over the ring handles and prevent any elements from entering through the open windows in the ring. I hope you find these changes useful.

**********
