Attachable track for Custom Hot Wheels Track System

Сведения о модели

Площадка
Printables
Цена
Бесплатно
Лицензия
CC-BY-NC-SA
Только некоммерческое использование с указанием автора; переделки — под той же лицензией.
Форматы
STL
  • 82 Лайки
  • 248 Загрузки
  • 0 Напечатали
  • 0 Комментарии
  • 1 864 Просмотры

Автор:Frikandel321

Опубликована

Описание

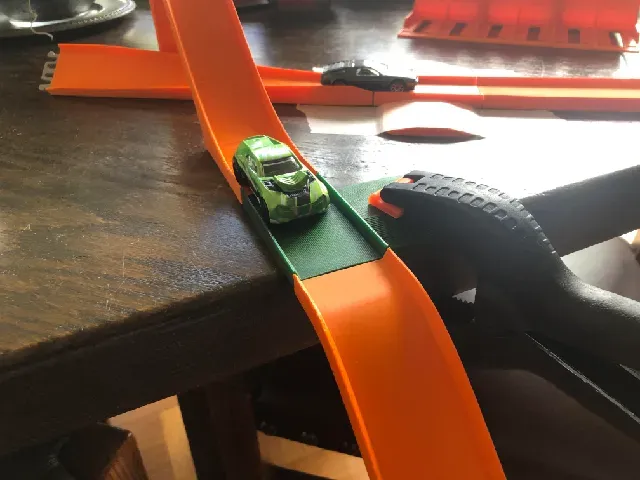

These roads can be clamped to a table or taped to the ground.

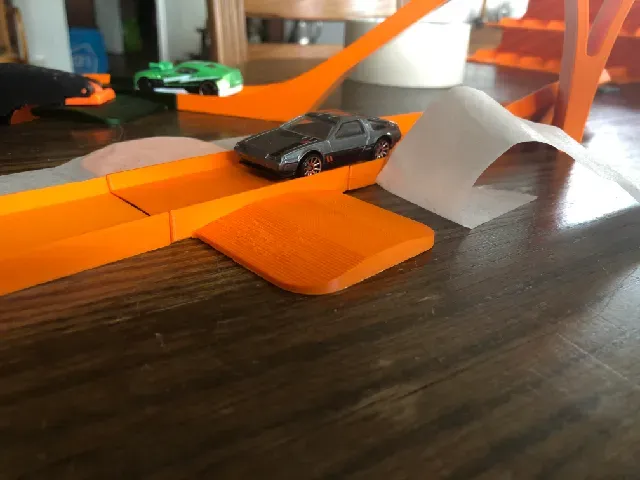

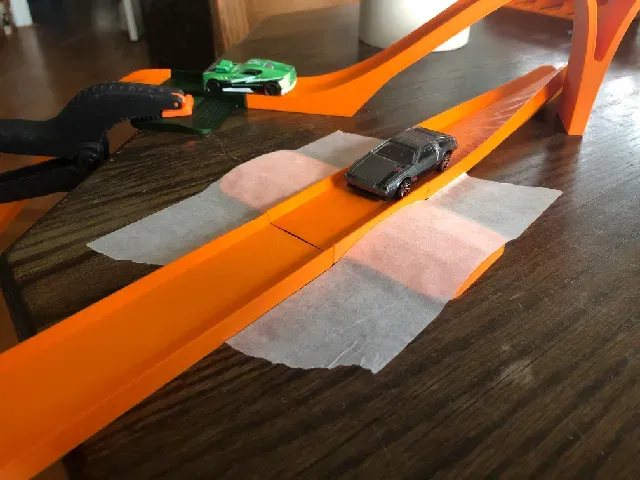

Two versions available, one with a single flap (for clamping), and one with two flaps (for taping).

The width of the flaps is the the same as most wide tapes out there. I use painters tape because it's easy and clean to remove and can be torn off without the need for sharp tools.

The flaps are flat in the middle for the clamp, but sloped downwards so tape can attach more firmly to the ground or table.

Connector:

PLA works well enough with some trial and error, but PETG is way more durable and easier to use.

Insert them into the slots by putting one corner in the slot, and then pushing the other corner inwards. (see pictures)

You can remove them by pulling straight, but off-center.

It is easier to remove connectors by inserting a screwdriver through the hole and pulling, but this is only necessary when printed in PLA.

To connect two pieces of track together simply insert the connector in one of them, and then fit the other onto it at an angle.
