BIQU MicroProbe mount for Mercury One.1 EVA 2.4

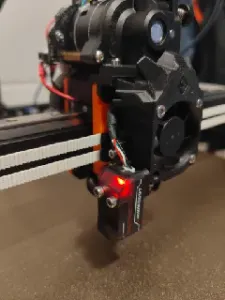

This is a mount for the BIQU MicroProbe made to fit the Mercury One.1 ZeroG mod.

It uses the short screws and nuts that comes with the probe to mount it.

The probe offsets are as follows:

x_offset: -35.5 y_offset: 5.0 z_offset: 1.390

Z offset is based on JP's Revo Voron mount. Calibrating the offset is always recommended.

https://www.printables.com/model/449902-eva-24-revo-voron-faceplate-heat-set-inserts

UPDATE:

A “thick” and “thicker” version has been added which should be more resistant to bending in case the probe hits a curled overhang or blob on the print surface. This might damage the probe instead though.
