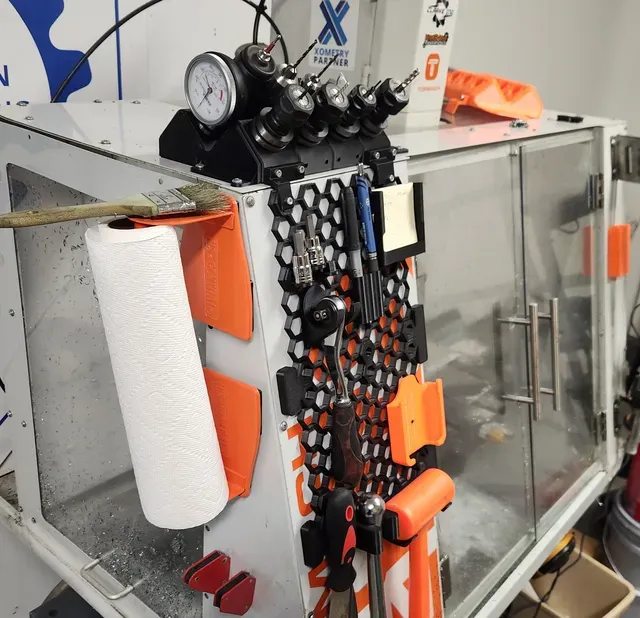

tormach 440 tts and hsw mount

This is a mesh of 2 pre-existing systems into one unit to make tool holding on a tormach pcnc 440 as convenient as possible (note, this will only work on a tormach factory enclosure).

* im pretty tall, so reaching the tools on top of the enclosure works for me. check it will work for you before printing all these parts

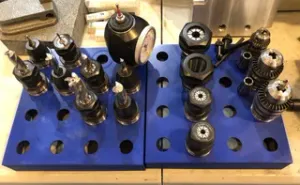

The foundation is the tts tool holders, originally found here: https://www.thingiverse.com/thing:1221238

I made some modifications such as:

added tolerance to the dovetails for a nice slip fit.

removed all screw mounting holes

relocated the small tool key holder to the back, there wasnt enough room for it to properly work on the front

added mounting holes for the hsw brackets

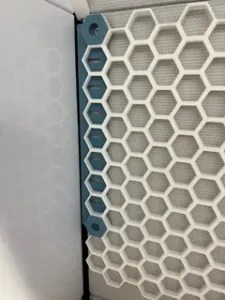

The other pre-existing sytem is the honeycomb storage wall (hsw). Its great in too many ways to mention, so just check it out for yourself.

https://www.printables.com/model/152592-honeycomb-storage-wall

fusion 360 and step files are added for anyone who wants to modify or make changes.

i made a 3mf that includes every piece needed , as well as individual files.

in total you will need to print:

8 tts holders

1 tts right mount

1 tts left mount

1 tts to hsw right bracket

1 tts to hsw left bracket

4 hsw adehisve mount-shortened.

1 hexagon-countersunk and hole

hardware: you need :

m4 nut- 6

m4x10 to 12mm bolt-6

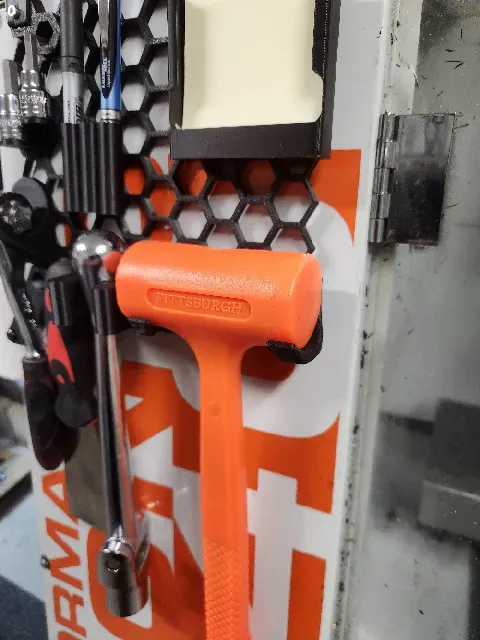

im also uploading a few accessories that may fit your needs such as a vise wrench and deadblow tool mount. you can find them on my profile.

link to the video guide:
