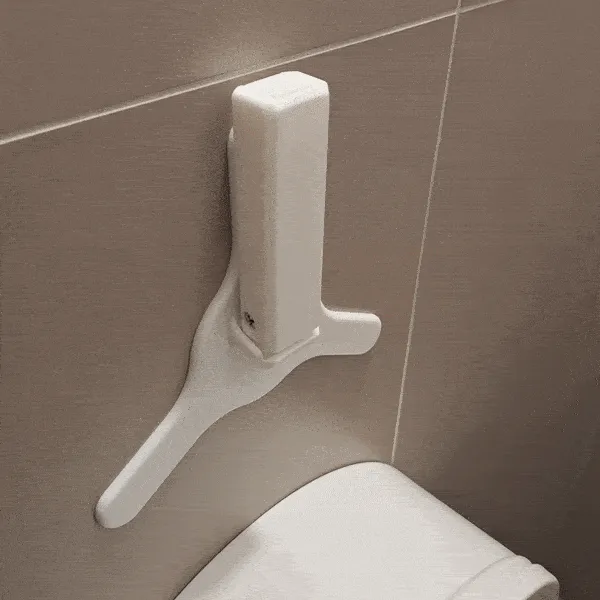

Foldable toilet paper holder (spare toilet paper holder)

Hello,

At my work, we have big toilet paper holders. But when the holder runs out of paper, there is no backup :-( Or if there is not much toilet paper left, the roll with the toilet paper is thrown away. It can also happen that the cleaning lady leaves new toilet paper on the dirty floor. I don't like either option.

So I created a folding toilet paper holder for big or small rolls. The spare roll is installed to the foldable paper holder until the main paper runs out.

The stopper can be closed by turning and the holder can be folded out. Stopper has integrated locking “click” mechanism.

The model contains three parts:

- Arm (different lenghts) - PETG of PLA, 0.15mm layer, 20% infill. - WallHolder (different styles) PETG, 0.15mm layer, 20% infill. No not use PLA! - Stopper (same size, little different lock mechanism) Use proper design based on your material because of flexibility and strength of the material. PETG of PLA, 0.15mm layer, 20% infill. You can combine these parts to fits your needs.

It takes a lot of force to assemble the stopper and the arm. It must be done without tools.

Use M4x25 ( DIN 7985 ) screw and M4 nut to combine these parts.

Put holder to the wall using double-sided tape.
