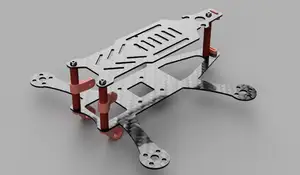

Quadcopter frame

This design is not yet successful. Sharing it in case any parts are useful to anyone else. It includes a frame, battery box, prop guards, and an adapter from 23mm to 30mm PCB hole spacing. I assembled a quad using this with these parts:

- Zeez Design F7 Flight Controller

- Zeez Design 60A 3-6S BLHeli_32 4-in-1 ESC

- Lumenier TX5GS 25-200-500mW 5.8GHz FPV Transmitter w/ BFCMS Control (MMCX) - might be the same as a Matek VTX HV.

- RunCam Split 3 Nano 14x14mm FPV / HD Camera

- HGLRC Forward FD1103 8000KV Brushless Motor 2S 3S RC Electric Motors DIY for Toothpick FPV Racing Drone Quad Copter Quadcopter

The motor mounts are too thin and I destroyed some motors by putting the screws in too far. So don't do that. The motors also seem to be too small to get the quad off the ground.
