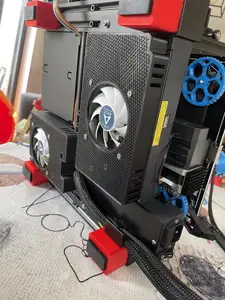

Ender 3 V2 / Pro motherboard cover for 80X25mm fan (no support) for large LM2596s

This is a remix of Ender 3 V2 / Pro motherboard cover for 80X25mm fan (no support) by scaryPug , which was a remix of Ender 3 V2 & Pro Silent Motherboard by TerraVestra .

Designed to fit Ender 3 V2, but will fit Ender 3 Pro also.

This cover fits an 80x80x25mm fan.

Buck Converter

I have added a different mount for yet another LM2596s buck converter. I thought I ordered the correct one, but it turns out I ordered something different.

This particular mount is for the following buck converter:

https://www.amazon.com/LM2596s-Converter-Step-down-Regulator-Stabilizer/dp/B07CVBG8CT/

OpenSCAD

I have included the OpenSCAD file I used to generate the standoffs/screw holes, so if you find yourself with yet another buck converter with a different footprint, have at it!

In order to get the OpenSCAD file to work, you must download BOSL (included 1.0.3):

https://github.com/revarbat/BOSL/wiki

Print Settings

Printer Brand:

Creality

Printer: Ender 3

Rafts:

No

Supports: No

Resolution:

200

Infill: 15% gyroid

Filament:

Hatchbox PETG Blue Grey Notes:

0.4mm nozzle

add a layer config for range 0.00 to 2.00 (mm) with the following settings:

- 8 perimeters

- 0 top layers

- 0 bottom layers

- extra perimeters if needed

- detect bridging parameters

- 50% infill triangle pattern

Category: 3D Printer Parts
