Heewing Ranger T1 Pan Mount

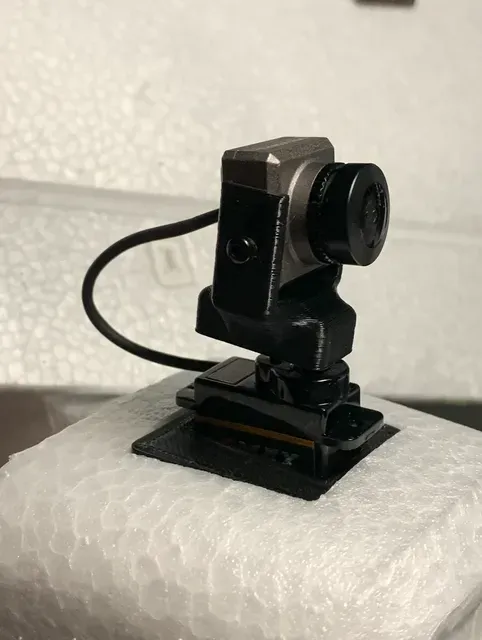

This simple panning camera mount is designed to require no foam-cutting whatsoever in its installation for those of us that don't want to be committed to a camera setup.

Simply install the servo into the cover, and glue the bottom of the servo to the deck of the front bay on the Ranger T-1, screw in the servo horn and then glue it to the horn slot in the camera mount after checking that it has your desired range of motion.

I designed it around Emax ES08MDII servos and their servo horns since I only needed to be able to look to the aircraft's right but it should work with any standard 9g servo as long as the dimensions are similar.

The servo must be slightly tilted for the cover to fit flush with the front GPS bay.

Don't hesitate to add suggestions or ask any questions.
