Shelly plus 1 Enclosure with Switch

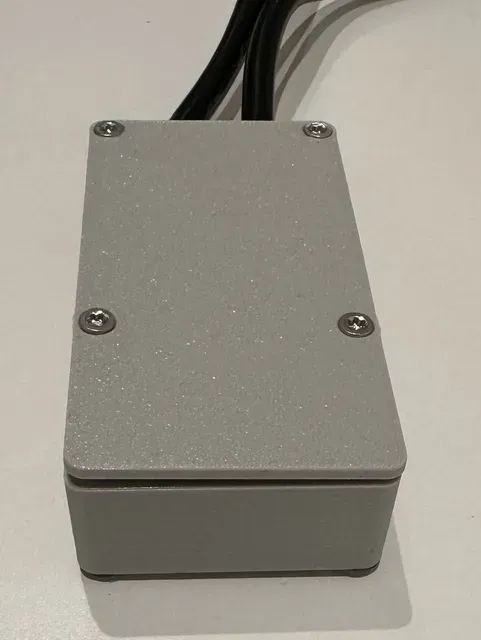

Enclosure for the Shelly Plus 1 with a robust button.

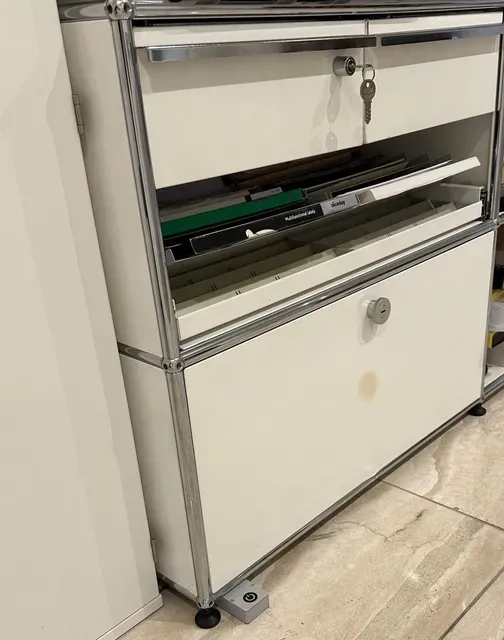

The enclosure can be used as a handheld or foot switch. If your bookshelf has a footwell (such as USM Haller), you can place the Shelly under the cabinet and control the connected lamp with your foot (see image). Shelly plus 1 PM fits best (it has enough terminals)

You’ll need the following additional parts:

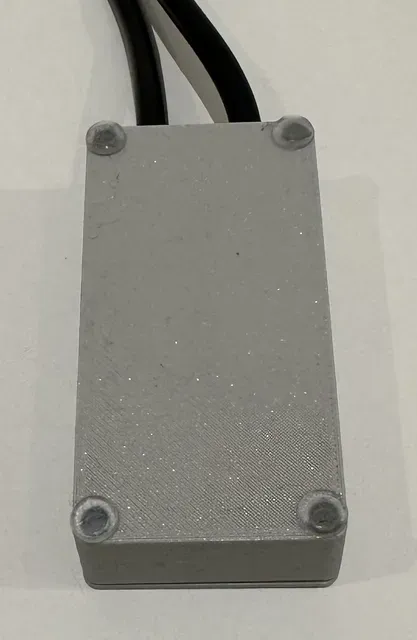

- 1 standard microswitch (Omron SS-10 or similar) - 4 pieces of M3 press-fit threads - 4 pieces of M3 countersunk screws - 2 pieces of 2.5mm cable ties - 4 rubber feets (5mm) Have Fun!

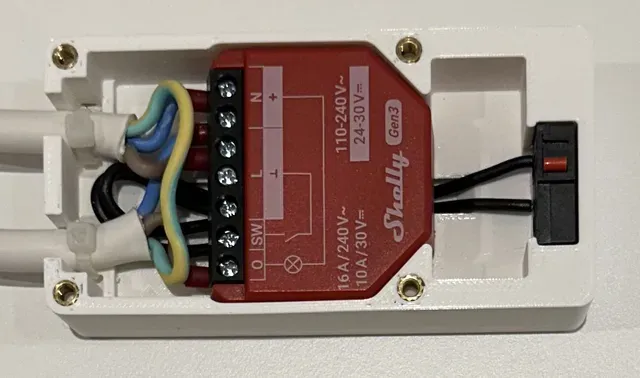

You have to solder 2 wires to the switch (COM and NO pin)

I use PETG on my PRUSA MK4, Nozzle 0.4mm, no supports, no rafts.

btw: i love the GEN3 shelly's! Practically no heat development in ECO Mode!

20240706: holes for LED and reset added 20240722: enhanced Version (lid holder, mounting holes) 20250108: multicolor lid with “standby sign”
