Badge & RSA Token Holder

Сведения о модели

Площадка
Printables
Цена
Бесплатно
Лицензия
CC-BY-NC-SA
Только некоммерческое использование с указанием автора; переделки — под той же лицензией.
Форматы
3MFSTL
  • 24 Лайки
  • 581 Загрузки
  • 3 Напечатали
  • 4 Комментарии
  • 2 399 Просмотры

Эта модель на других площадках

Автор:Reaper

Опубликована

Описание

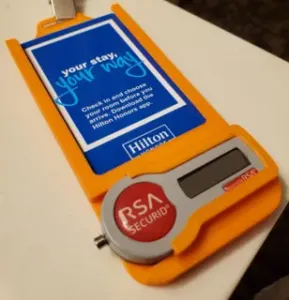

This is a remixed model of an RSA token and badge holder, originally made by xaviervilla over on Thingiverse. Shoutout to him for making a great model.

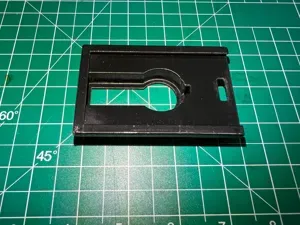

Like many, I do not have the pleasure of working for Lockheed, nor utilize their fancy badge gripper - but I loved the look and sleekness of the model, so I removed the LM logo, and made it so it can accept the standard, clear, button and plastic badge fastener such as so:

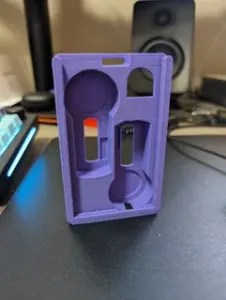

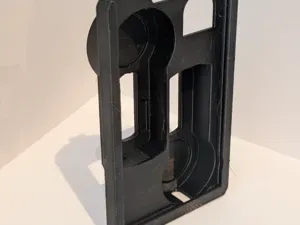

I also made a version of the model that can accept two cards in the slot, for anyone that has more than one that they carry around.

I have been printing this with Bambu Lab's black carbon fiber PLA, which gives it an awesome matte look, along with being light and strong - which is what you see in the photos.

Print specs / details:

- Printer: Bambu Labs X1C - Material: Bambu Labs Black Carbon Fiber PLA (Default Settings) - Supports: None - Layer Height: .20 - Brim: 8mm to ensure it doesn't fall over, as it's quite tall There are some overhangs in the slot where the clip goes, as well as at the top of the RSA token slot. I didn't have issues printing those, but if you struggle with overhangs, you may want to use some minor supports in those areas.

In the future, I may make a version that can hold two RSA tokens, if there is a demand for that.
