HSW New LED Tester Holder

I love the Honeycomb Storage Wall by @RostaP enough to now have a 30-panel wall in my workroom - covering 108cm x 111cm (nearly 4 feet x 4 feet)! All of the outer panels have a solid frame thanks to the fabulous Honeycomb storage wall with borders remix by @Waldmops_249902 !

Naturally, some of my favorite tools couldn't be suitably held by any of the HSW remixes that I found on Printables , so I got to work in ViaCad Pro...

My new LED Tester is a "HiLetgo LED Tester" that has actual dimensions of 56 mm wide by 22.44 mm deep by 80.3 mm high with a rounded bottom . I bought this unit (a 2-pack) from Amazon in June 2024 at the URL: https://www.amazon.com/HiLetgo-Tester-2-150mA-Light-Emitting-Battery/dp/B07VHCBSY3 It's available from Amazon, AliExpress, and likely many more outlets under numerous brand names - including DEVMO, Gump's grocery, jojobasec, Yuly, FIYA, atcdfuw, and on and on. Use the photos and measurements provided in this listing to confirm that this design fits your LED Tester.

I couldn't find any HSW holder for this tool on Printables , so now we have one.

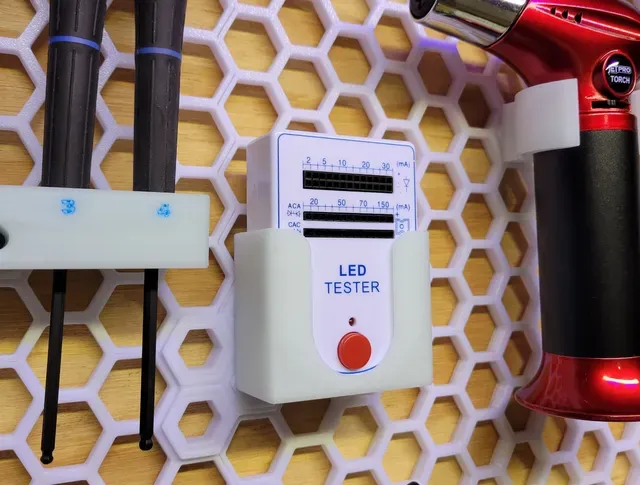

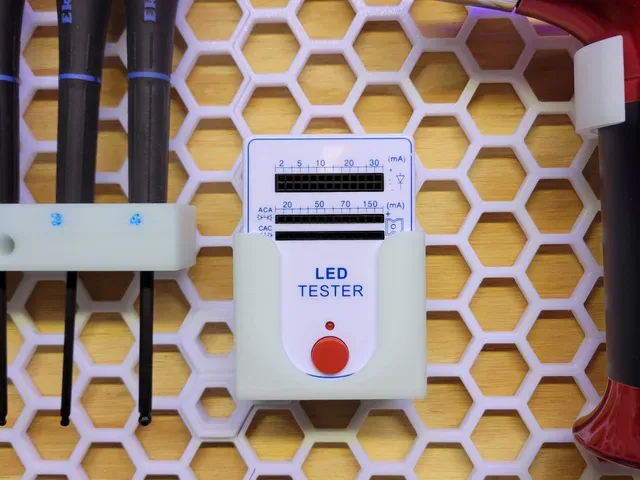

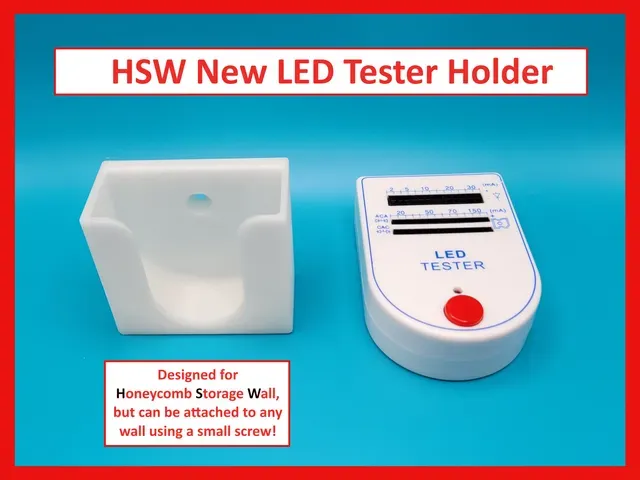

This LED Tester Holder has an M3 hole for attachment to the honeycomb storage wall with a @RostaP insert-with-M3.stl insert. The internal dimensions of this holder are 56 mm wide by 23 mm deep by 49 mm high - with a rounded bottom .

Note that this New LED Tester Holder is designed for the honeycomb storage wall, but it could be attached to any wall using a small screw!

The provided STL file can be printed in PLA or PETG and does not require supports.

A PrusaSlicer 3MF file is provided for generic PLA.

A g-code file has been provided for the Original Prusa MK4 using Input Shaper at 0.2mm layer height.

The New LED Tester Holder seen in the photos was printed on an Original Prusa MK4 with Sunlu White/Blue Glow-in-the-dark PLA using Input Shaper with a 0.4mm nozzle at 0.2mm layer height with a 15% gyroid infill.

My previously published HSW LED Tester Holder was made to fit an older (rectangular) LED Tester. This new LED Tester design appears to be the evolved version of that old design. Thanks to @aquinoes_805666 for publishing a make of my original holder and inspiring me to upgrade!

Be sure to check out my other designs - including more honeycomb storage wall (HSW) accessories, universal key covers, and a diverse collection of household accessories and 3D printing tools - on Printables at https://www.printables.com/@PhilCaruso_661446/models
