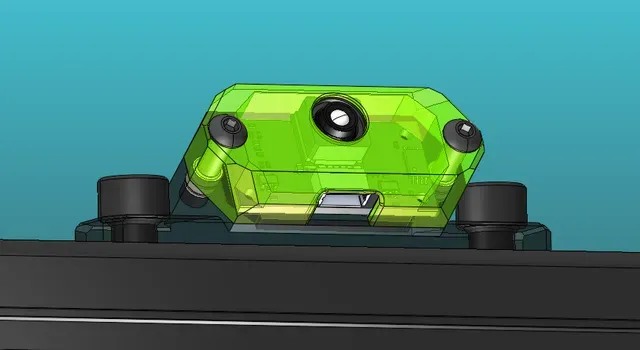

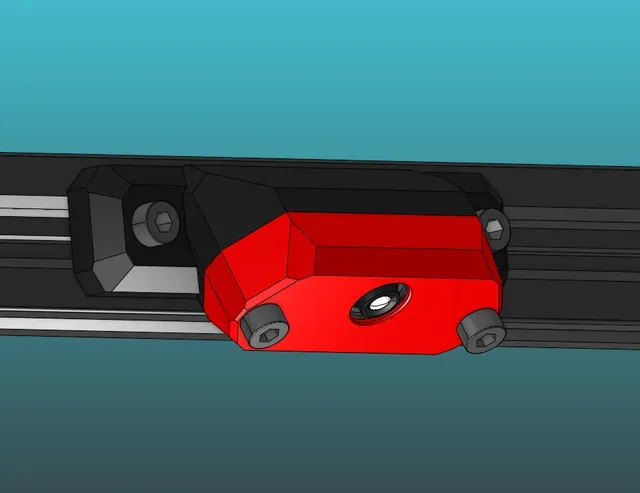

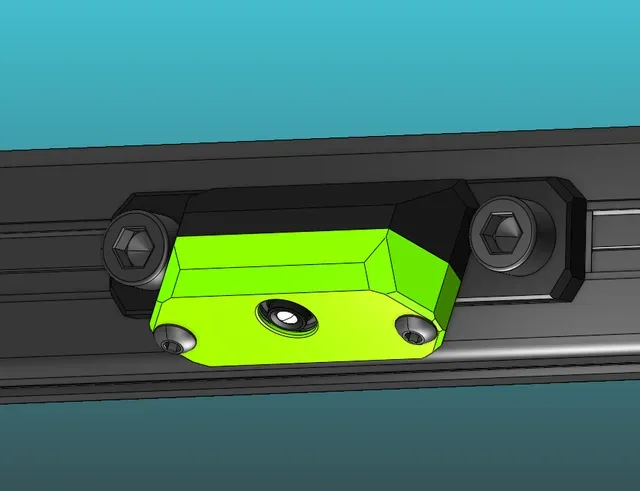

3DO usb cam V2 Mount for enclosure

update: I have corrected the 0.5 offset error of the camera hole

!!!!!!only works for V2 camera from 3DO !!!!!!!!

this mount is made for this camera from 3DO https://3do.dk/3do-kamera/2335-3do-enclosure-nozzle-camera-v2-dsp-pcb.html

https://3do.eu/3do-camera/2334-1835-3do-enclosure-nozzle-camera-v2-sensor.html#/210-sensor_type-enclosure_camera_not_glued

this mount have an angle of 30 degrees from profile

feel free to comment if you need a different angle.

BOM Rat Rig assembly 2 pcs M3x12 (to clamp the camera/house to the baseplate)

2 pcs M3 heat-inserts (to be inserted into baseplate)

2 pcs M6x12 + t-nuts (to mount to the 3030 profile)

BOM Voron assembly 2 pcs M3x12 (to clamp the camera/house to the baseplate)

2 pcs M3 heat-inserts (to be inserted into baseplate)

2 pcs M3x12 + t-nuts (to mount to the 2020 profile)

use this tool to adjust the focus https://www.printables.com/model/945044-3do-enclosure-cam-focus-adjuster
