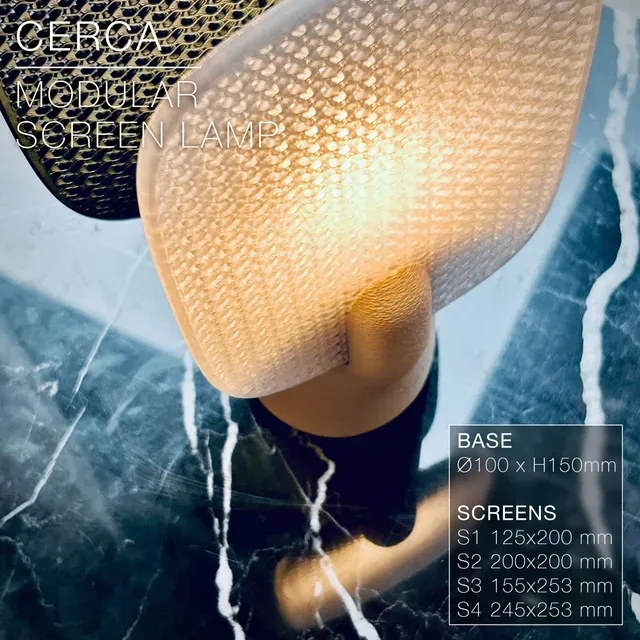

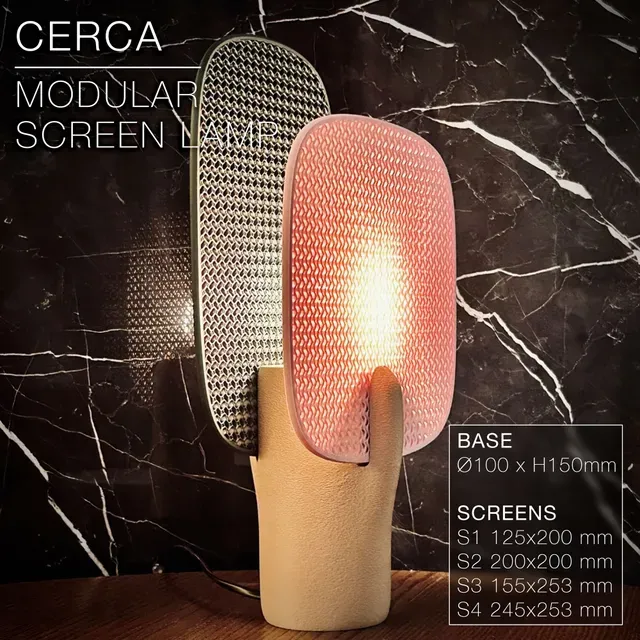

Modular screen table lamp. Endless possibilities. 1 base + 4 screen sizes Mix and match the colours to make your own unique combination!

The screens (2 square, 2 rectangular) simply slide onto the base. They print extremely fast. Just a perimeter frame and a mesh. No endless flat faces taking forever to print. So count 20min for the smallest one (125 x 200mm), And up to 40min for the largest one (245 x 253mm).

The base comes in 2 versions, for either E14, E26 or E27 sockets.

You can get the power cords from Amazon here:
 For Europe: E27 cord:   https://amzn.to/3OVrZjK
 E14 cord:   https://amzn.to/3TchBqs

For the US: E26/E27 cord:   https://amzn.to/3U0Xyvy

Happy printing!

DIMENSIONS (base) | W80 mm x L102 mm x H250 mm E14 base opening: 29mm E26/27 base opening: 42mm

SCREEN (Rectangle S) | W125 mm x H 200 mm x D3 mm

SCREEN (Square S) | W200 mm x H 200 mm x D3 mm

SCREEN (Rectangle L) | W155 mm x H 253 mm x D3 mm

SCREEN (Square L) | W245 mm x H 253 mm x D3 mm

3D PRINT SETTINGS All STL files are already oriented properly.

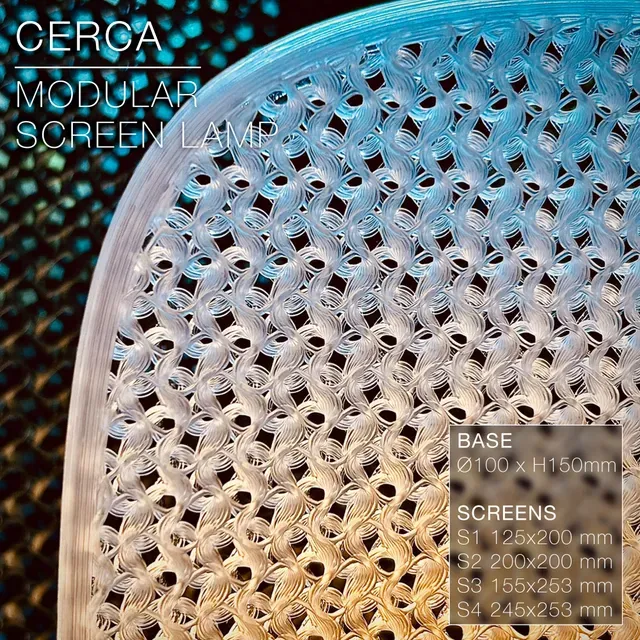

The screens print flat and come as full models (without mesh). To create the mesh pattern, use 4 perimeter walls and cancel the top and bottom layers (set to 0 layers) and select an infill pattern of your choice. The screens on the pictures where printed with 25% Gyroid infill. Less infill and you will get larger holes and maybe a cooler projected-shadows effect, but the light bulb will be more visible as well.

SCREENS: Layer height: 0.3mm/layer or less if you fancy Wall line count: 4 (for 0.4mm nozzles) Top layers: 0 Bottom layers: 0 Infill: 25% Infill line width: 0.8mm Build adhesion type: None Supports: None

BASE: Infill: 20 to 30% Wall line count: 2 Resolution: 0.3mm/layer or less if you fancy Build adhesion type: None Supports: None

The base on the pictures was printed with some “fuzzy skin”.

- fuzzy skin thickness: 0.2mm - fuzzy skin point distance: 0.6mm
