BattRAK LTO Carrier for Solar Charger and RAK Base Board

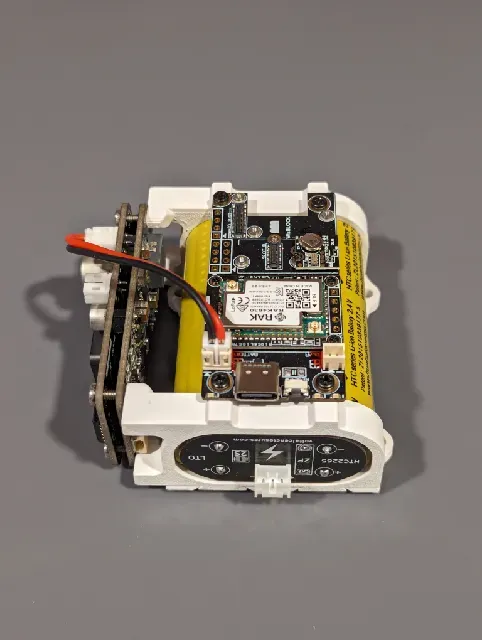

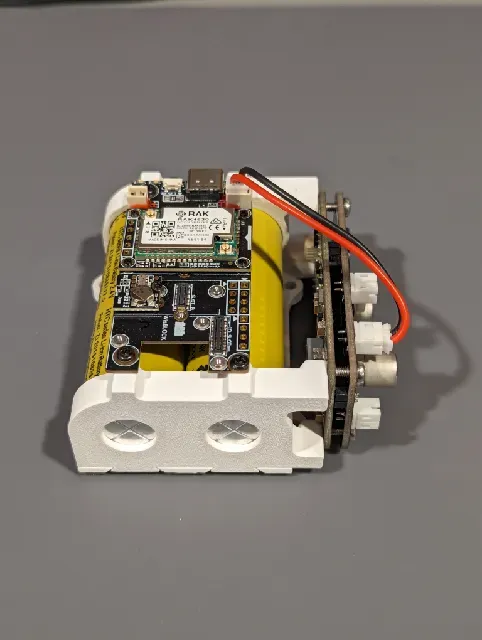

It's a battery holder for two HTC2265 LTO batteries. It includes attachment points for the MCSBC-SVR and a RAK base board. The Side-By-Side option has a minimum space requirement of 90x76x30mm. A practical minimum enclosure size is 100x120x36mm.

The front and back parts slide onto the carrier and are secured in place with (4) M2.5x4 or M2.5x6 screws.

Use (4) M2.5x4 screws to secure the RAK.

Use (4) M2.5x8 screws to secure the MCSBC-SVR.

The carrier mounting holes are centered at 60x40mm and should fit most off-the-shelf enclosure plates.

The Dovetail Carrier can be used in an enclosure that has the mating dovetail geometry (see example part). This allows for an enclosure design with the opening on the bottom to reduce the need for gaskets. I'm working on a proof of concept that will be uploaded here.

I'm happy to make edits. Just let me know.

UPDATE 2024-09-02

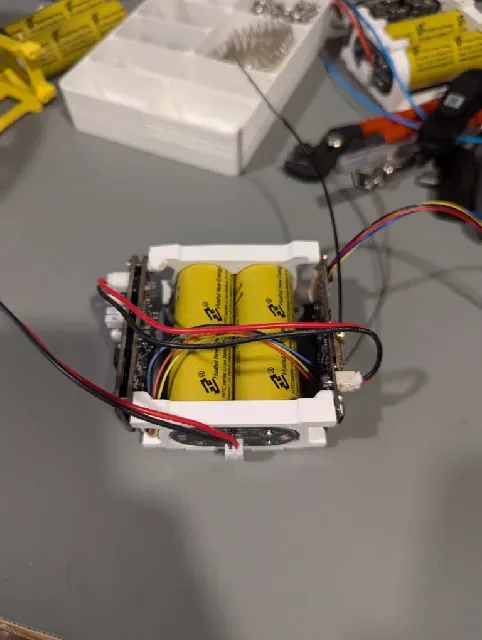

Added x4 LTO holder for printing a BattRAK that holds 4 HTC2265 cells.
