Hero Me Gen 7 - CR-10 SE Adapter -

Площадка: Printables
Цена: Бесплатно
Лицензия: CC-BY-NC-SA; Только некоммерческое использование с указанием автора; переделки — под той же лицензией.
Форматы: STLSTEPF3D

8 Лайки
43 Загрузки
0 Напечатали
0 Комментарии
821 Просмотры

Эта модель на других площадках

Creality Cloud

Автор:Carsten Sellenk

Опубликована 07.07.2024

Скачать на Printables

Описание

--This is not a standalone mod, various other modifications are necessary!--

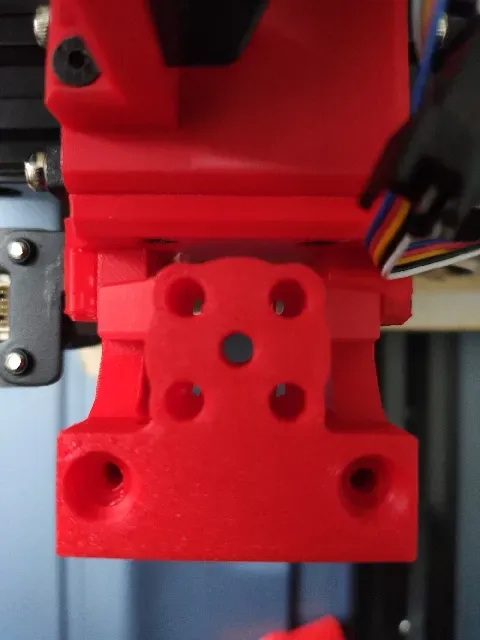

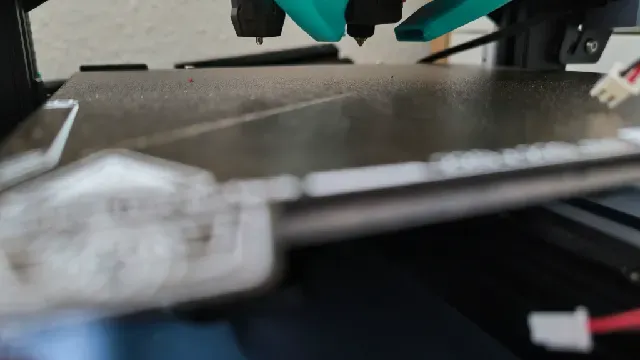

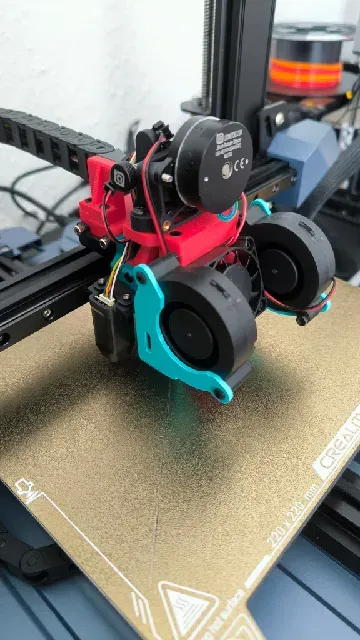

I have made an adapter for the CR-10 SE. The advantage of the Hero Me system is the free choice of fans and hotends. The adapter is made of two parts, the upper block for the MGN12C bracket and the adapter plate itself, which is attached to the front of the block and the bracket. The MGN12C bracket must be fastened with the top two screws first, these are then covered by the plate. Then attach the plate to the bracket with the bottom two screws. The original CR-Touch holder can still be used here. The block is available with and without attachment for my chain mod. There is no visible loss of build space and if there is, it is only minimal at the rear.
